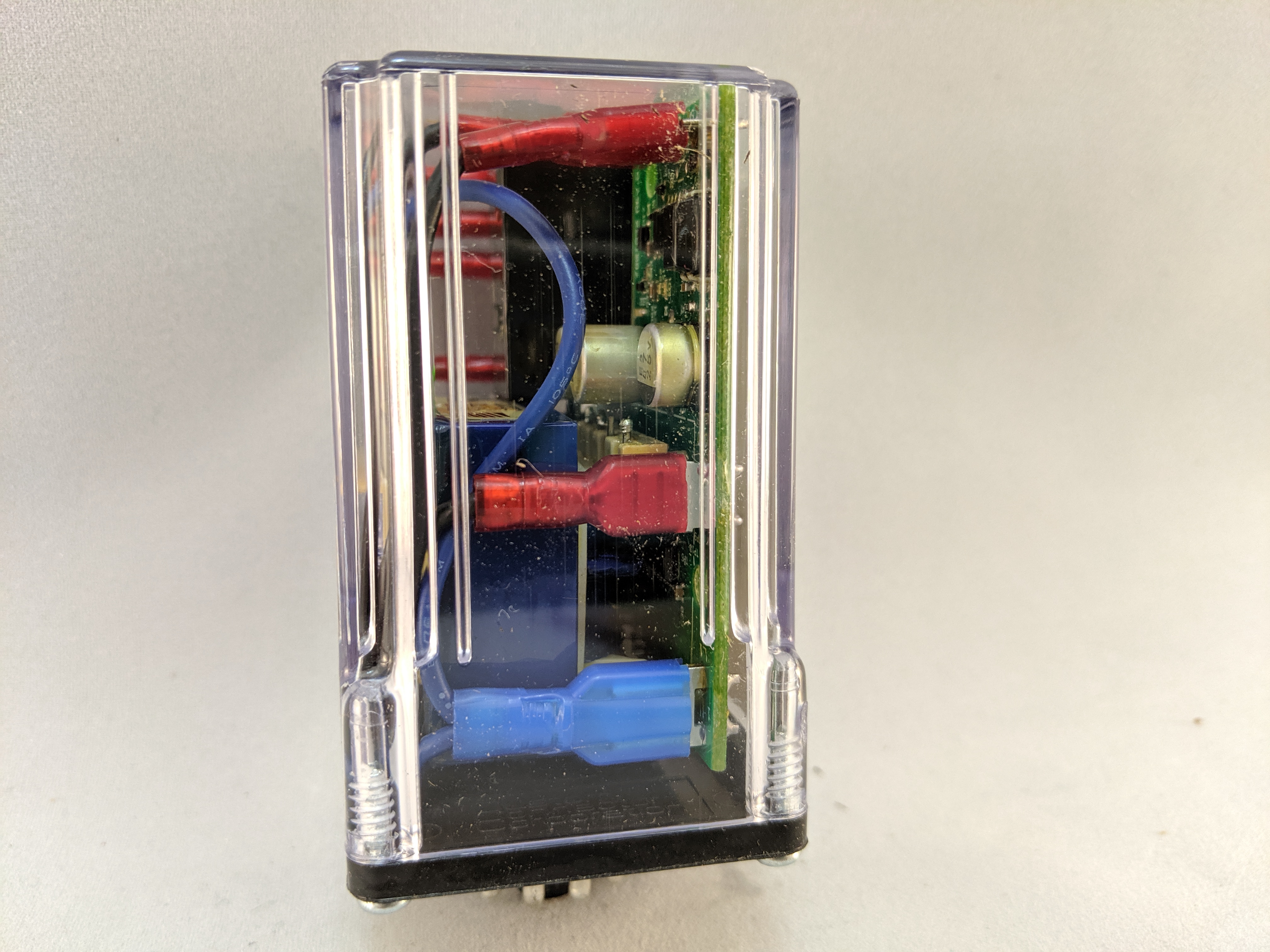

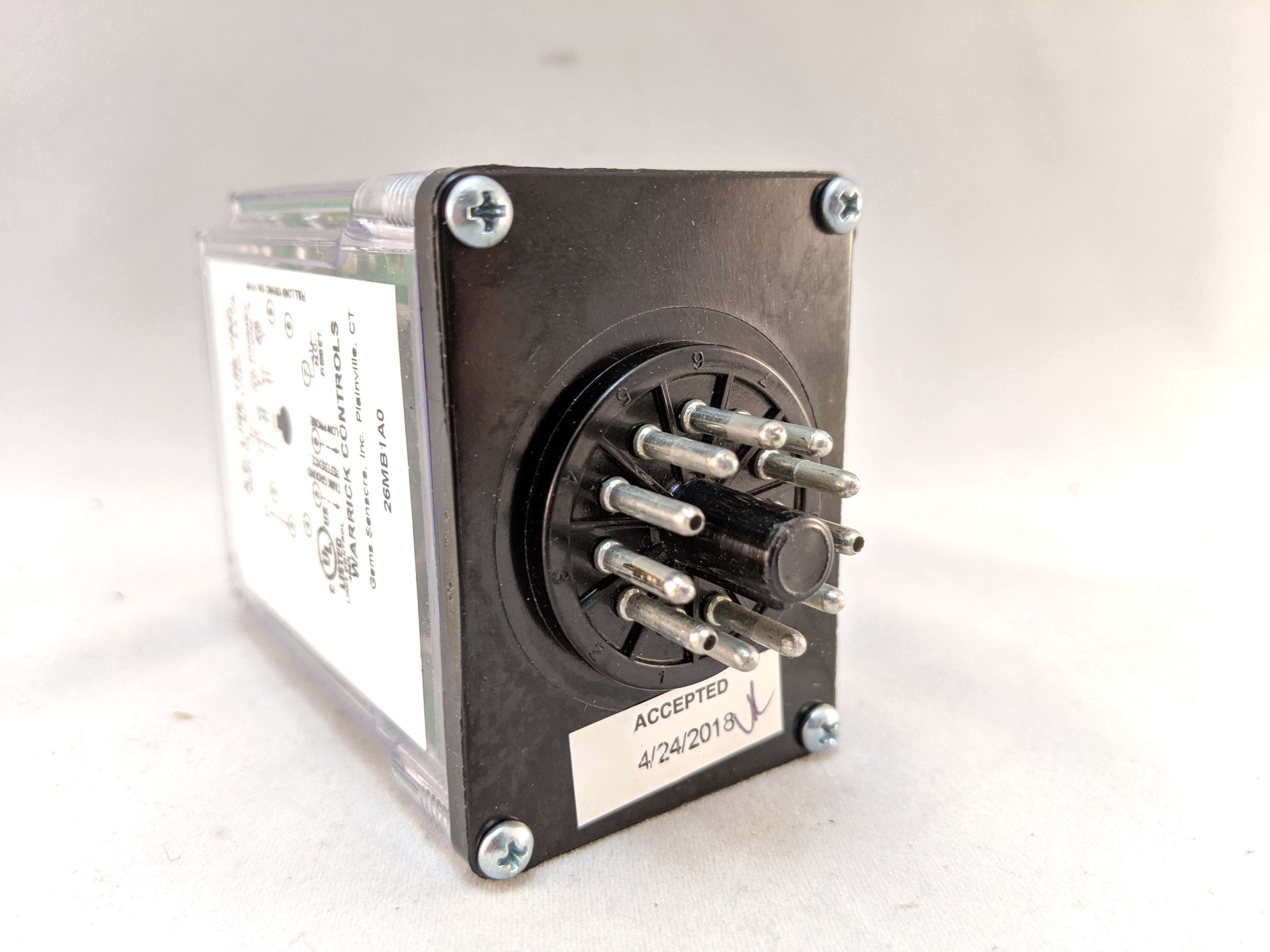

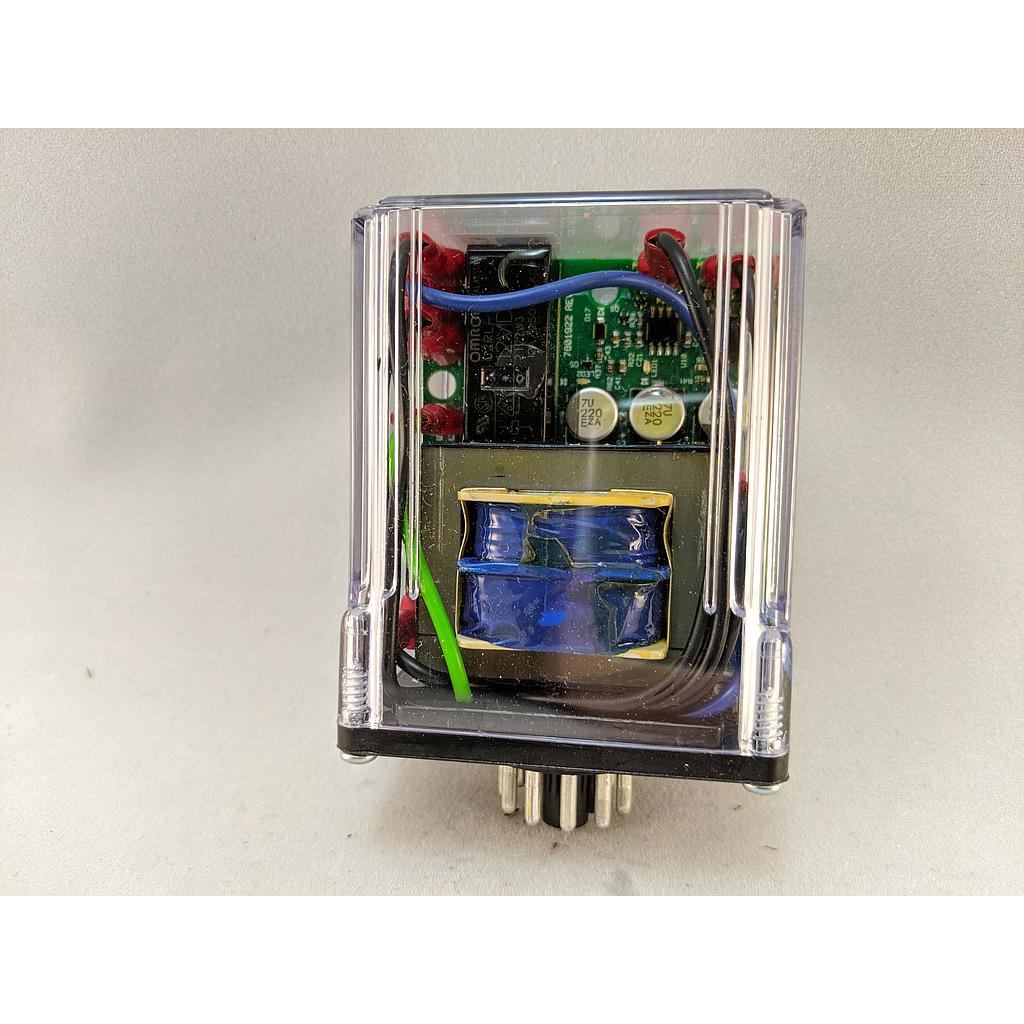

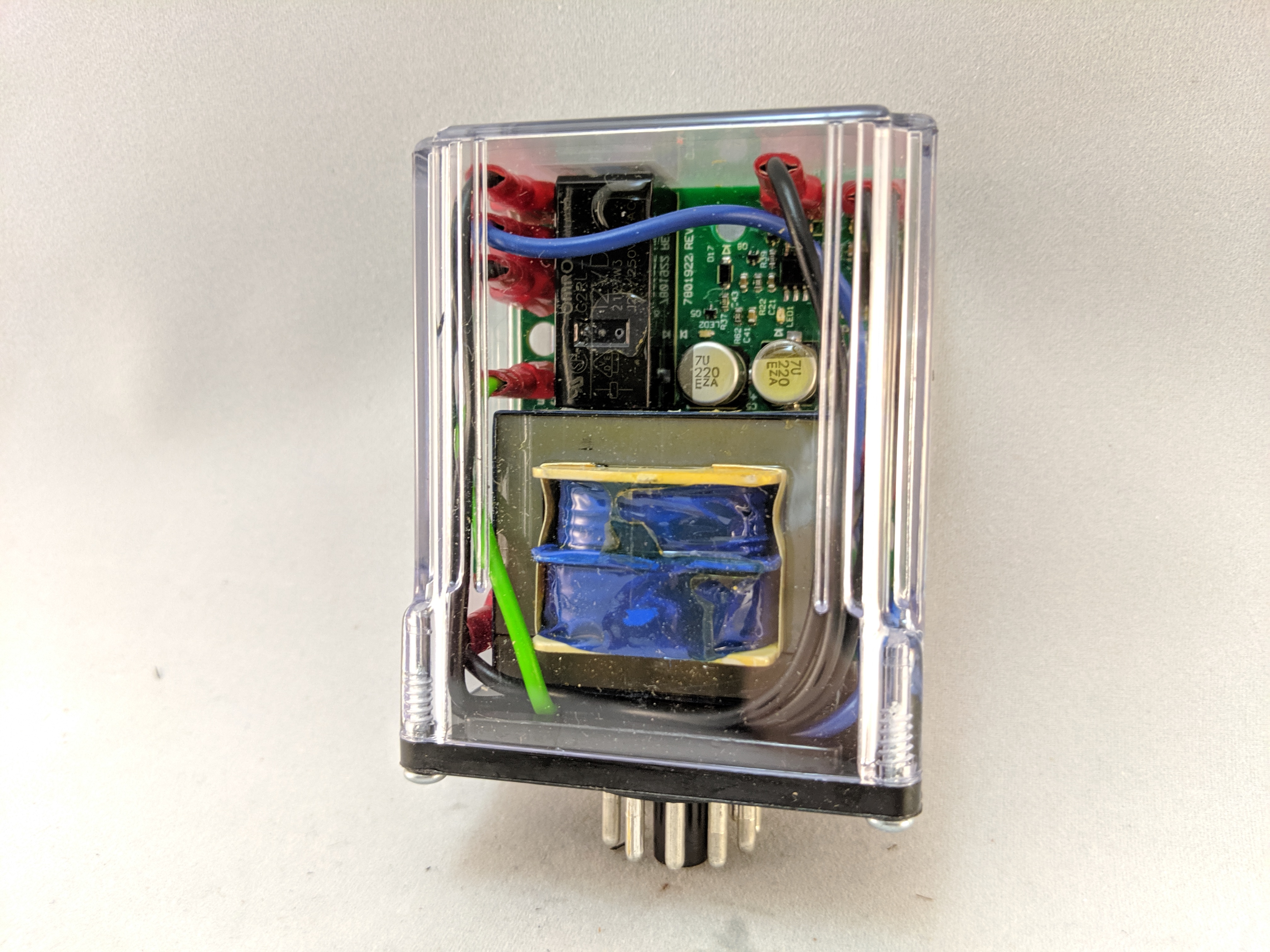

Low-Water Cutoff Level Control, 10k Ohm Sensitivity, 120VAC, 11 Pin Octal Mount, No Enclosure

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 26MB1A0

Weight: 0.8 lb(s)

Series 26M Low-Water Cutoff Plug-In Module is designed for low-water cutoff protection and meets CSD1 requirements for boiler low-water cutoff. Series 26M features powered contacts. If non-powered contacts are required, please contact factory and request

information on Series 26NM. Options include: Dirty Electrode Detection, Manual Reset Button (If level drops, control is deactivated until liquid level returns to normal and pushbutton is depressed), Power Outage Feature (ignores nuisance outages and

resets when power is restored), Test and time delays are available.

Sku: 26MB1A0

Model: 26M

Sensor Type: Low Water Cutoff Controls

Mode Of Operation: Direct

Sensitivity: 10 K ohms

Control Style: Plug-In Module

Socket Style: 11 Pin Octal

Standoff Style: N/A

Enclosure: N/A

Contact Design: 1 Normally Open & 1 Normally Closed (powered)

Contact Rating: 10 Amp Resistive 1/3 horse power

Supply Voltage: 120 VAC

Secondary Voltage: 12 VAC

Terminal Style: Screw Connector

Minimum Temperature: -40°F

Maximum Temperature: 150°F

Protection: Non-Intrinsically Safe

Approvals: UL 353 for use in Boilers

Weight: 1.1
