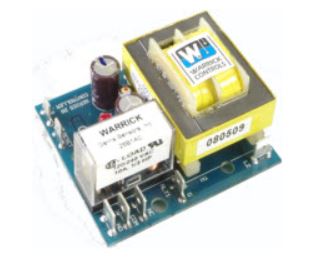

Series 26 Low Water Cut Off - Retrofit Standoff Mount, Options: Reset Function, Normally Closed Pushbutton, Power Outage, Test Feature

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 26C1D0A

Weight: 0.01 lb(s)

Model 26
Mode of Operation Direct
Sensitivity 26 K
Control Style Open Board
Standoff Style Retrofit
Enclosure None
Contact Design 1 Normally Open & 1 Normally Closed (non-powered)
Contact Rating 10 Amp Resistive 1/3 horse power
Secondary Voltage 12 VAC
Terminal Style Spade Connection
Number of Channels 1
Approvals UL 353 for use in Boilers

Model 26
Mode of Operation Direct
Sensitivity 26 K
Control Style Open Board
Socket Style N/A
Standoff Style Retrofit
Enclosure None
Contact Design 1 Normally Open & 1 Normally Closed (non-powered)
Contact Rating 10 Amp Resistive 1/3 horse power
Secondary Voltage 12 VAC
Terminal Style Spade Connection
Number of Channels 1
Minimum Temperature (°F) -40
Maximum Temperature (°F) 150
Protection Non-Intrinsically Safe
Approvals UL 353 for use in Boilers
Minimum Qty (per Release) 1
Weight (Lbs) 0.5
