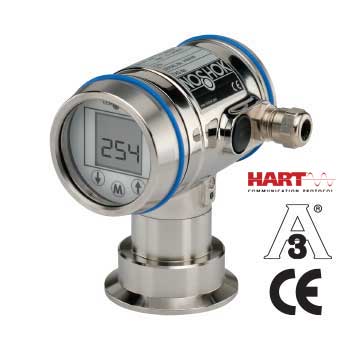

25 Series Sanitary Transmitter, Tri Clamp 2", -14.7 psig to 335 psig

https://www.branom.com/web/image/product.template/195308/image_1920?unique=d3c7a60
(0 review)

Manufacturer: Noshok Inc

Mfg Product Code: 254-16-14.7/335-vac-1-1-28

Weight: 3.5 lb(s)

On Hand: 0

25 Series Sanitary Transmitter, Tri Clamp 2", Range Adjustable from -14.7 psig to 335 psig, 0.2% of adjusted span, 4-20 mA/2-wire, 1/2 NPT Female

  • Easy programming and range adjustment without test pressure via on-board display
  • 4:1 turn down
  • Active temperature compensation
  • Hart® protocol output available
  • All Stainless Steel housing and wetted parts

Applications:

  • Food & dairy
  • Chemical processing
  • Pharmaceutical

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

1,492.27 1492.27 USD 1,492.27

1,492.27

Not Available For Sale

  • Measurement Maximum
  • Process Connection Type
  • Pressure Range
  • Product Unit of Measure
  • Process Connection Size
  • Process Connection Location
  • Accuracy
  • Case Material
  • Wetted Material
  • Measurement Minimum
  • Output Communication Protocol

This combination does not exist.


Product Datasheets

Datasheet 1

25 Series Sanitary Transmitter, Tri Clamp 2", -14.7 psig to 335 psig

  • Measurement Maximum
  • Process Connection Type
  • Pressure Range
  • Product Unit of Measure
  • Process Connection Size
  • Process Connection Location
  • Accuracy
  • Case Material
  • Wetted Material
  • Measurement Minimum
  • Output Communication Protocol

1,492.27 1492.27 USD 1,492.27

1,492.27

Not Available For Sale

This combination does not exist.


25 Series Sanitary Transmitter, Tri Clamp 2", Range Adjustable from -14.7 psig to 335 psig, 0.2% of adjusted span, 4-20 mA/2-wire, 1/2 NPT Female


Measurement Maximum:335.0
Process Connection Type:Tri-Clamp
Pressure Range:-14.7 psig to 335 psig
Product Unit of Measure:psig
Process Connection Size:2"
Process Connection Location:Bottom
Accuracy:0.2% of adjusted span
Case Material:316 SS
Wetted Material:316L SS
Measurement Minimum:-14.7
Output Communication Protocol:4-20 mA, 2-wire


Specifications

Measurement Maximum 335.0
Process Connection Type Tri-Clamp
Pressure Range -14.7 psig to 335 psig
Product Unit of Measure psig
Process Connection Size 2"
Process Connection Location Bottom
Accuracy 0.2% of adjusted span
Case Material 316 SS
Wetted Material 316L SS
Measurement Minimum -14.7
Output Communication Protocol 4-20 mA, 2-wire
