200 Series Low Pressure Diaphragm Dry Pressure Gauge, 0 psi to 10 psi
Manufacturer: Noshok Inc
Mfg Product Code: 25-210-10-psi
Weight: 0.8 lb(s)

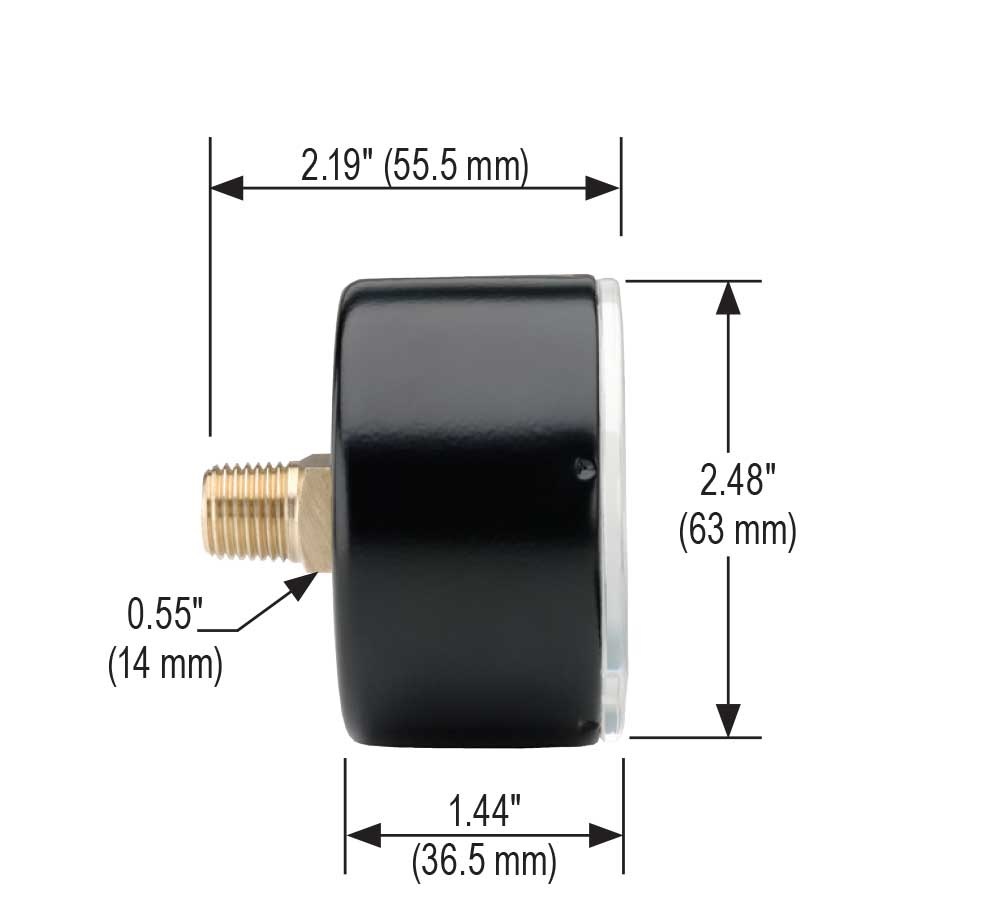

2.5" Black Steel Case, Copper Alloy Internals, 10 psi, 1/4" (NPT) Back
- Sensitive capsule-type non-fillable dry gauge
- Black painted Steel, Stainless Steel and impact-resistant ABS case
- Copper alloy and Brass wetted parts
Applications:
- Filter monitoring
- Gas distribution
- HVAC
- Leak detection
- Level indication
- Medical
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
200 Series Low Pressure Diaphragm Dry Pressure Gauge, 0 psi to 10 psi
2.5" Black Steel Case, Copper Alloy Internals, 10 psi, 1/4" (NPT) Back
Brand_Name:Noshok
Measurement Maximum:10.0
Process Connection Type:NPT
Dial Size:2-1/2 (63 mm)
Pressure Range:0 psi to 10 psi
Min Operating Pressure:0 psi
Max Operating Pressure:10 psi
Min Operating Temperature:-4 °F
Product Unit of Measure:psi
Max Operating Temperature:176 °F
Process Connection Size:1/4"
Process Connection Location:Back
Accuracy:±1.6% full scale
Case Material:Steel, Black
Wetted Material:Brass
Measurement Minimum:0
Specifications
| Brand_Name | Noshok |
| Measurement Maximum | 10.0 |
| Process Connection Type | NPT |
| Dial Size | 2-1/2 (63 mm) |
| Pressure Range | 0 psi to 10 psi |
| Min Operating Pressure | 0 psi |
| Max Operating Pressure | 10 psi |
| Min Operating Temperature | -4 °F |
| Product Unit of Measure | psi |
| Max Operating Temperature | 176 °F |
| Process Connection Size | 1/4" |
| Process Connection Location | Back |
| Accuracy | ±1.6% full scale |
| Case Material | Steel, Black |
| Wetted Material | Brass |
| Measurement Minimum | 0 |
