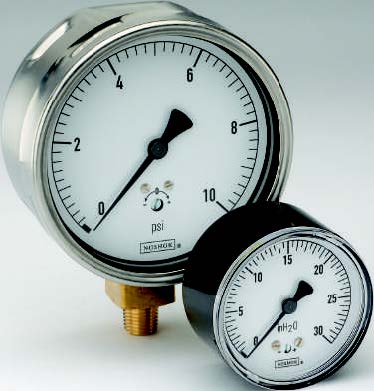

200 Series Low Pressure Diaphragm Dry Pressure Gauge, 0 inH2O to 200 inH2O with SS Case
Manufacturer: Noshok Inc
Mfg Product Code: 25-200-200-inH2O-SSC
Weight: 0.5 lb(s)
2.5" Stainless Steel Case, Copper Alloy Internals, 200 inH₂O, 1/4" (NPT) Male Bottom
- Sensitive capsule-type non-fillable dry gauge
- Black painted Steel, Stainless Steel and impact-resistant ABS case
- Copper alloy and Brass wetted parts
Applications:
- Filter monitoring
- Gas distribution
- HVAC
- Leak detection
- Level indication
- Medical
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
200 Series Low Pressure Diaphragm Dry Pressure Gauge, 0 inH2O to 200 inH2O with SS Case
2.5" Stainless Steel Case, Copper Alloy Internals, 200 inH₂O, 1/4" (NPT) Male Bottom
Measurement Maximum:200.0
Process Connection Type:NPT-Male
Dial Size:2-1/2 (63 mm)
Pressure Range:0 inH₂O to 200 inH₂O
Min Operating Pressure:0 inH₂O
Max Operating Pressure:200 inH2O
Min Operating Temperature:-4 °F
Product Unit of Measure:in.H20
Max Operating Temperature:176 °F
Process Connection Size:1/4"
Process Connection Location:Bottom
Accuracy:±1.6% full scale
Case Material:Steel, Black
Wetted Material:Copper Alloy
Measurement Minimum:0
Specifications
| Measurement Maximum | 200.0 |
| Process Connection Type | NPT-Male |
| Dial Size | 2-1/2 (63 mm) |
| Pressure Range | 0 inH₂O to 200 inH₂O |
| Min Operating Pressure | 0 inH₂O |
| Max Operating Pressure | 200 inH2O |
| Min Operating Temperature | -4 °F |
| Product Unit of Measure | in.H20 |
| Max Operating Temperature | 176 °F |
| Process Connection Size | 1/4" |
| Process Connection Location | Bottom |
| Accuracy | ±1.6% full scale |
| Case Material | Steel, Black |
| Wetted Material | Copper Alloy |
| Measurement Minimum | 0 |
