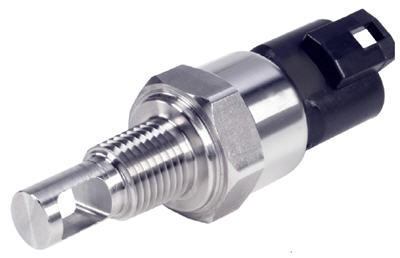

XLS-1 ULTRASONIC LEVEL SENSOR, DRY SINK

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 247775

Weight: 0.35 lb(s)

XLS-1 ULTRASONIC LEVEL SENSOR, DRY SINK

Actuation Level N/A

Switch Operation Dry Sink

Min. Liquid N/A

Stem Material Stainless Steel

Float Material N/A

Float Diameter N/A

Mounting Size M12 X 1.5 PER ISO6149-3

Mounting Horizontal

Switch Type TTL/CMOS Compatible

Input 5-28 VDC

Output Open Collector Sink 30 Ma @ 30 VDC

Maximum Pressure (PSI) 250

Minimum Temperature (°F) -40

Maximum Temperature (°F) 257

Electrical Termination 12"-14" PVC Cable

Wetted Materials 316L Stainless Steel, EPDM. 30% Glass Filled Polyester

Approvals CE, RoHS, UL/cIL Recognized

Minimum Qty (per Release) 1

Weight (LBS) 0.25
