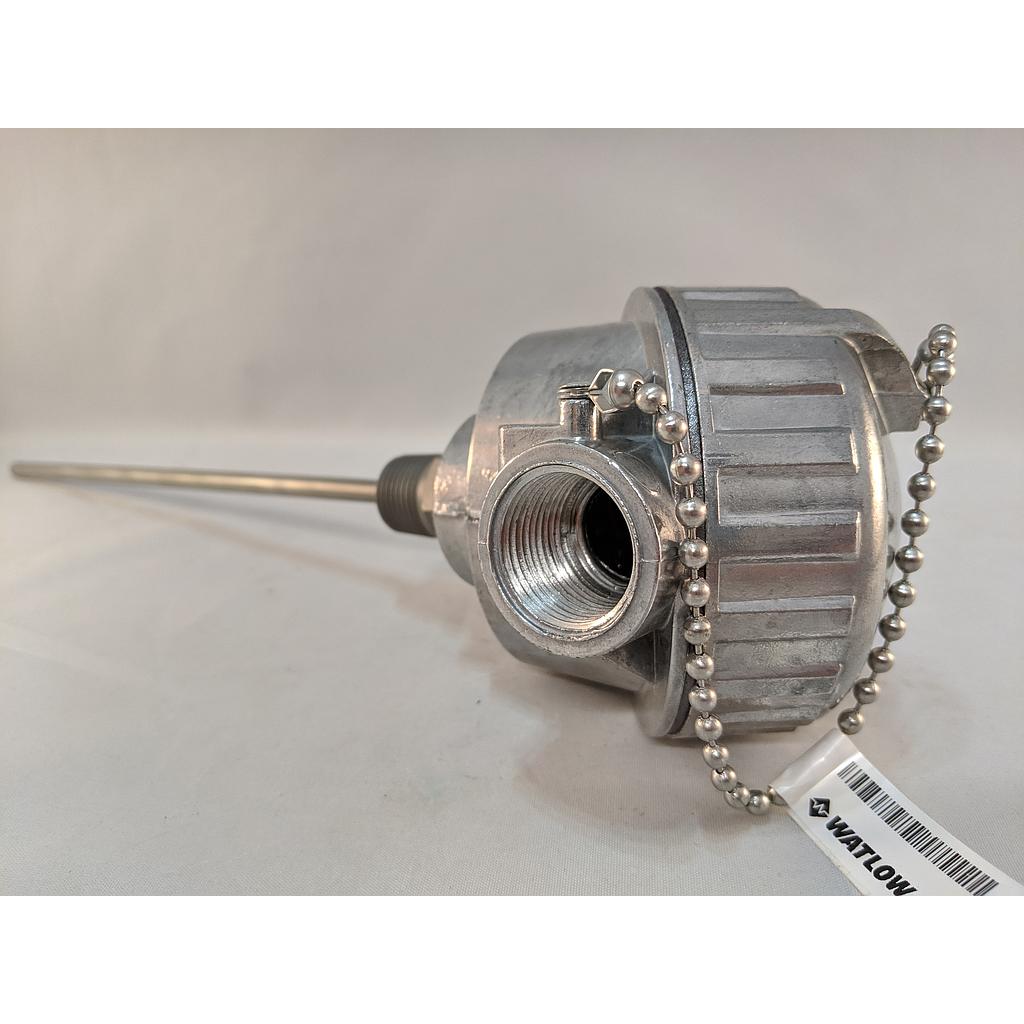

Watlow 3-Wire Rtd w/Cast Alum Connection Head 3"SS Sheath 1/2"NPT
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2416-0378
Weight: 0.01 lb(s)
RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Thermowell No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style C - 5750 Non-Isolated Transmitter
Fitting H-Spring Loaded, Double Threaded, 316SS 1/2 NPT
Sheath Length 3.000
Tolerance [in] ± 0.125
Bend Straight Length
Transmitter Style C - 5750 Non-Isolated, Non-Linearized
Sensor Type 0 - RTD PT100 3-WIRE 00385
Unit of Measure F - Fahrenheit
Low Temperature Sign + Positive
Low Temperature 35
High Temperature Sign + Positive
High Temperature 220
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Part Code RRJEH0A030BB00X
