Watlow Tubular Flanged Heater

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2396-7253

Weight: 50.0 lb(s)

Circ Flange Voltage: 480
Circ Flange Wattage: 93,336
Watt Density: 20.3

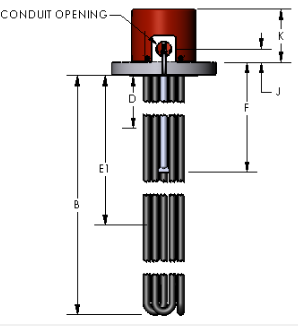

B Dimension (Immersed element length): 70.6875
Number of Elements: 24 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 4
Flange Size: 8 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Steel
Baffles? No Baffles
Cold End Section below the Flange: 6.8125
Process Sensor: Type 3A Thermostat, 175-550°F
Hi-Limit Sensor: Type K Thermocouple
Celsius Dial Plate? No
Mounting Orientation: Horizontal
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 47.1250
Stand-off Terminal Enclosure? No
Terminal Enclosure: Moisture Resistant (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2396-7253 CF7

Circ Flange Voltage: 480
Circ Flange Wattage: 93,336
Watt Density: 20.3
B Dimension (Immersed element length): 70.6875
Number of Elements: 24 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 4
Flange Size: 8 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Steel
Baffles? No Baffles
Cold End Section below the Flange: 6.8125
Process Sensor: Type 3A Thermostat, 175-550°F
Hi-Limit Sensor: Type K Thermocouple
Celsius Dial Plate? No
Mounting Orientation: Horizontal
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 47.1250
Stand-off Terminal Enclosure? No
Terminal Enclosure: Moisture Resistant (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2396-7253  CF7
