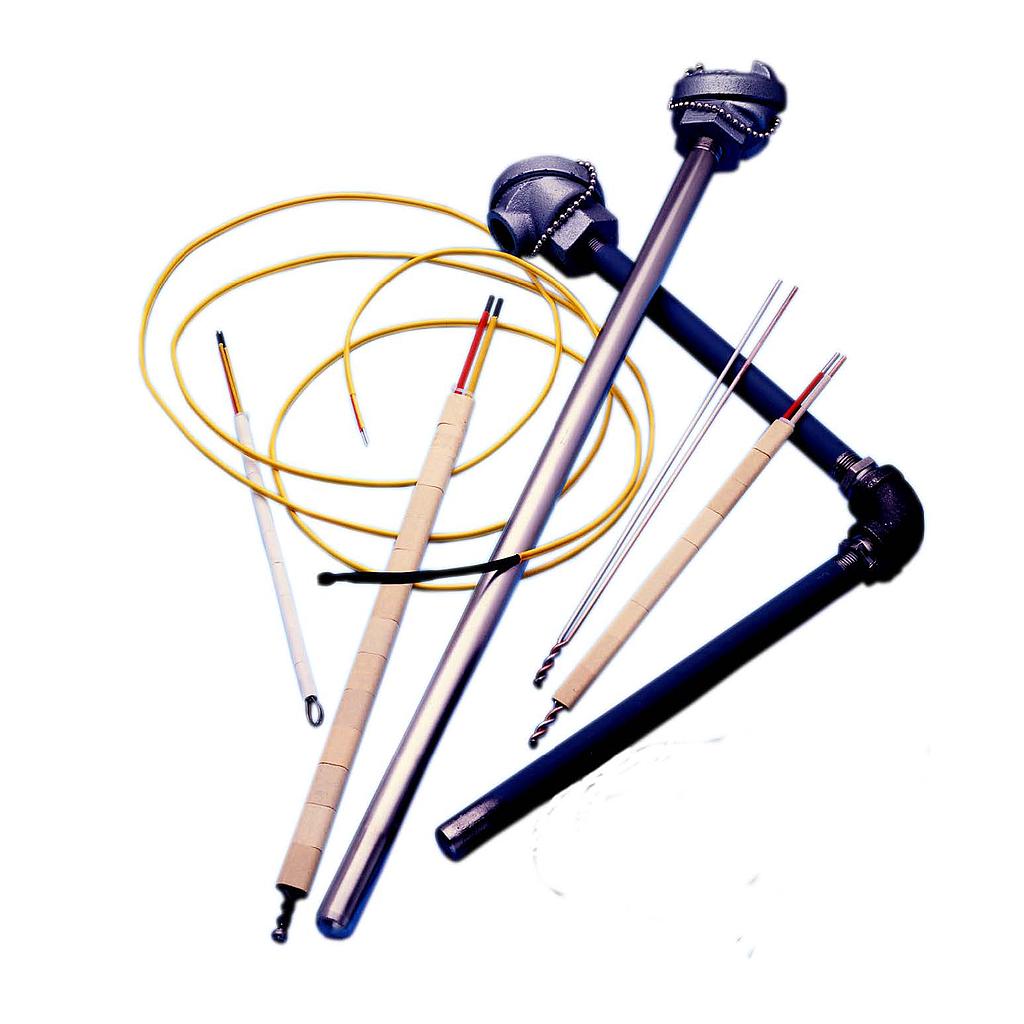

Style 40 Type J T/C, 0.250" Diameter Sheath

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2394-4806

Weight: 0.01 lb(s)

Sensor Style 40 Style - .250 Dia-Straight
Sheath Outside Diameter [in] U = .250 inch epoxy sealed 300°F
Junction Type/Tip Style G: Single "G" Round Tip
Calibraton Type Type J
Limits of Error Standard Limits
Sheath Length [in] (L) 12.000
Process Mtg Fitting Single Threaded Compression
Compression Fitting Style N3 - Non-adjustable 303 SS
Strain Relief 1"Heat Shrink
Potting 03 - 300 Deg F
Lead Wire Type B -Fiberglass w/SS Overbraid, 20 GA Stranded
Lead Length [in] (E) 12
Termination Type A - Split Leads w/ 1/2" Bare

Insulated Singles Length [in] (S) 2.500
Lead wire Color Code ANSI - United States Standard
Certification Type No Certification Required
