20 Series Style Type K Thermocouple, .188" Diameter, Grounded, 3" Sheath Length, 50ft Lead
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2355-9554
Weight: 0.01 lb(s)
Sensor Style 20 Style- .125 & .188 Dia-Straight
Sheath Outside Diameter [in] T = .188 inch epoxy sealed 300°F
Junction Type/Tip Style G: Single "G" Round Tip
Calibraton Type Type K
Limits of Error Standard Limits

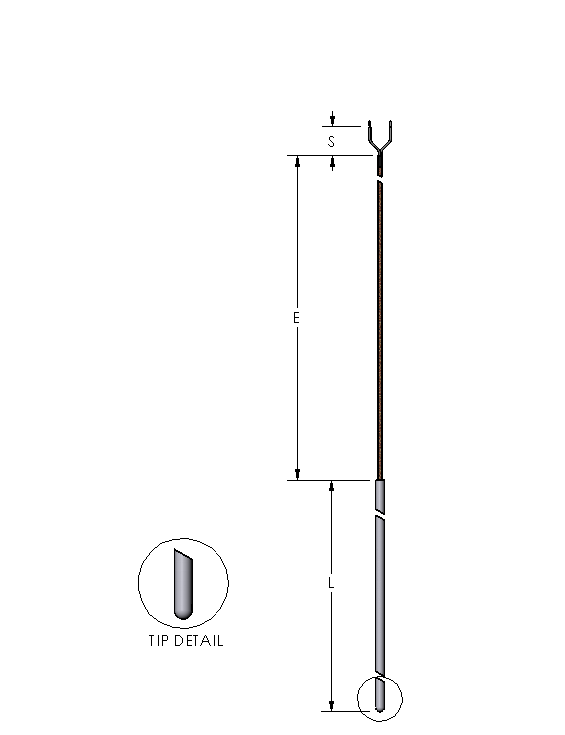

Sheath Length [in] (L) 3.000
Process Mtg Fitting None
Strain Relief 1"Heat Shrink
Potting 03 - 300 Deg F
Lead Wire Type B -Fiberglass w/SS Overbraid, 20 GA Stranded
Lead Length [in] (E) 600
Termination Type A - Split Leads w/ 1/2" Bare
Insulated Singles Length [in] (S) 2.500
Lead wire Color Code ANSI - United States Standard
Certification Type No Certification Required
