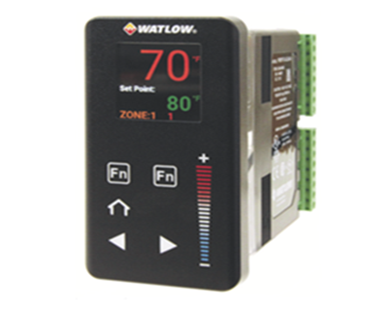

PM Plus Configured
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2346-0593
Weight: 2.0 lb(s)
Package Size 8 = 1/8th DIN Vertical Plus
Primary Function C = PID Controller with Universal Input
Power Supply 4 = 20 to 28VAC or 12 to 40VDC, plus 2 digital I-O points
Output 1 and 2 CC - Out1 = Switched dc/open collector : Out2 = Switched DC
Communications 3 = EtherNet/IP and Modbus TCP
Auxiliary Control Functions L = Integrated Limit Controller with Universal Input
Output 3 and 4 CJ - Out3 = Switched dc/open collector : Out4 =Mech Relay 5A, SPST-NO
Model Selection V = PM PLUS enhance firmware (isolated input 1, input 2 is always isolated)
Custom Options WP = Logo Face Plate
Model Number PM8C4CC-3LCJVWP
