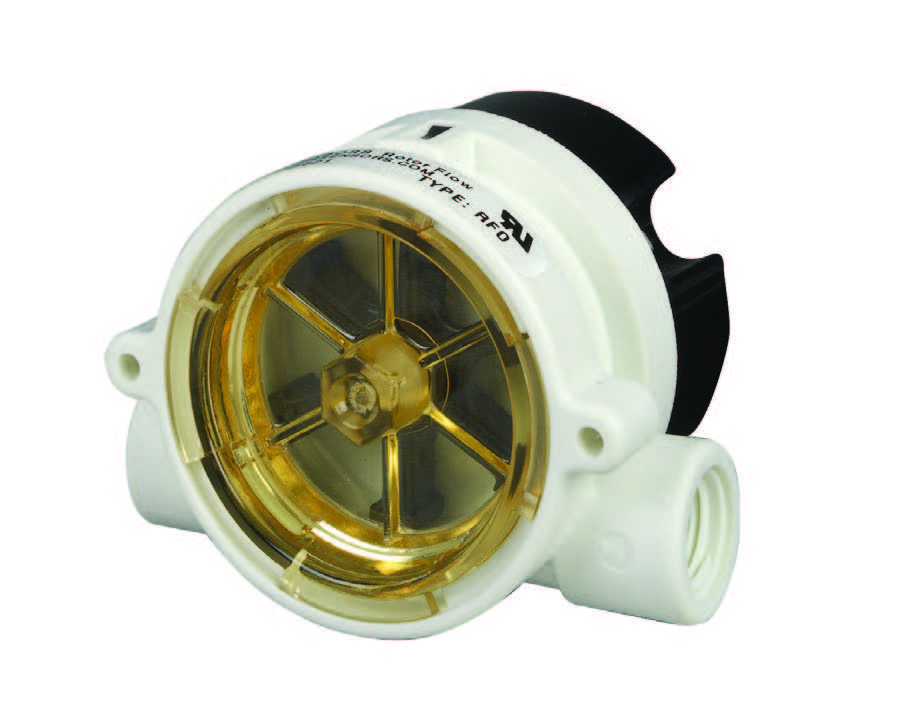

Gems RFA RotorFlow, Flow Rate Monitoring, .25˝ NPT, 0.1 to 1.0 GPM
Manufacturer: Setra Systems LLC (dba Gems Sensors)
Mfg Product Code: 230206
Weight: 5.0 lb(s)
Standard Flow Range (GPM) 0.1 - 1.0
Flow Range (GPM) 0.1-1.0
Body Material Polypropylene
Port Size 1/4" NPT Female
Input Power 24 VDC ±10%
Output 0-10 VDC Anaolg Signal @ 1mA, Max.
Low Flow Accuracy ±7%
Standard Flow Accuracy ±7%
Maximum Pressure (PSI) 100
Minimum Temperature (°F) -20
Maximum Temperature (°F) 180
Electrical Termination 22 AWG, 24"-24" PVC Cable
Wetted Materials Polypropylene, Ceramic, PPS Composite, Polysulfone, Buna N (Low Flow Adapter - Polypropylene)
Gems RFA RotorFlow, Flow Rate Monitoring, .25˝ NPT, 0.1 to 1.0 GPM
Standard Flow Range (GPM) 0.1 - 1.0
Flow Range (GPM) 0.1-1.0
Body Material Polypropylene
Port Size 1/4" NPT Female
Input Power 24 VDC ±10%
Output 0-10 VDC Anaolg Signal @ 1mA, Max.
Low Flow Accuracy ±7%
Standard Flow Accuracy ±7%
Maximum Pressure (PSI) 100
Minimum Temperature (°F) -20
Maximum Temperature (°F) 180
Electrical Termination 22 AWG, 24"-24" PVC Cable
Wetted Materials Polypropylene, Ceramic, PPS Composite, Polysulfone, Buna N (Low Flow Adapter - Polypropylene)
