  3. Gems RFA RotorFlow, Flow Rate Monitoring, .25˝ NPT, 0.5 to 5.0 GPM, 0-10VDC Output
Public Pricelist (v2)

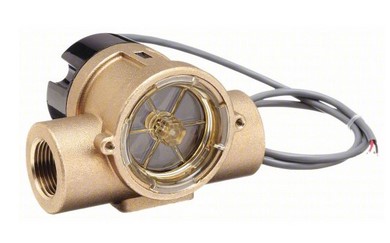

Representative photo. Please check item description for details.

Gems RFA RotorFlow, Flow Rate Monitoring, .25˝ NPT, 0.5 to 5.0 GPM, 0-10VDC Output

https://www.branom.com/web/image/product.template/542106/image_1920?unique=0c63bcd
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 230205

Weight: 0.01 lb(s)

On Hand: 0

Sensor Type RotorFlow
Standard Flow Range (GPM) 0.5 - 5.0
Flow Range (GPM) 0.5-5.0
Body Material Polypropylene
Port Size 1/4" NPT Female
Input Power 24 VDC ±10%
Output 0-10 VDC Anaolg Signal @ 1mA, Max.
Low Flow Accuracy ±7%
Standard Flow Accuracy ±7%
Maximum Pressure (PSI) 100
Minimum Temperature (°F) -20
Maximum Temperature (°F) 180
Electrical Termination 22 AWG, 24"-24" PVC Cable
Wetted Materials Polypropylene, Ceramic, PPS Composite, Polysulfone, Buna N (Low Flow Adapter - Polypropylene)

$ 360.50 360.5 USD $ 360.50

$ 360.50

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Gems RFA RotorFlow, Flow Rate Monitoring, .25˝ NPT, 0.5 to 5.0 GPM, 0-10VDC Output

      $ 360.50 360.5 USD $ 360.50

      $ 360.50

      Not Available For Sale

      This combination does not exist.

      Sensor Type RotorFlow
      Standard Flow Range (GPM) 0.5 - 5.0
      Flow Range (GPM) 0.5-5.0
      Body Material Polypropylene
      Port Size 1/4" NPT Female
      Input Power 24 VDC ±10%
      Output 0-10 VDC Anaolg Signal @ 1mA, Max.
      Low Flow Accuracy ±7%
      Standard Flow Accuracy ±7%
      Maximum Pressure (PSI) 100
      Minimum Temperature (°F) -20
      Maximum Temperature (°F) 180
      Electrical Termination 22 AWG, 24"-24" PVC Cable
      Wetted Materials Polypropylene, Ceramic, PPS Composite, Polysulfone, Buna N (Low Flow Adapter - Polypropylene)
