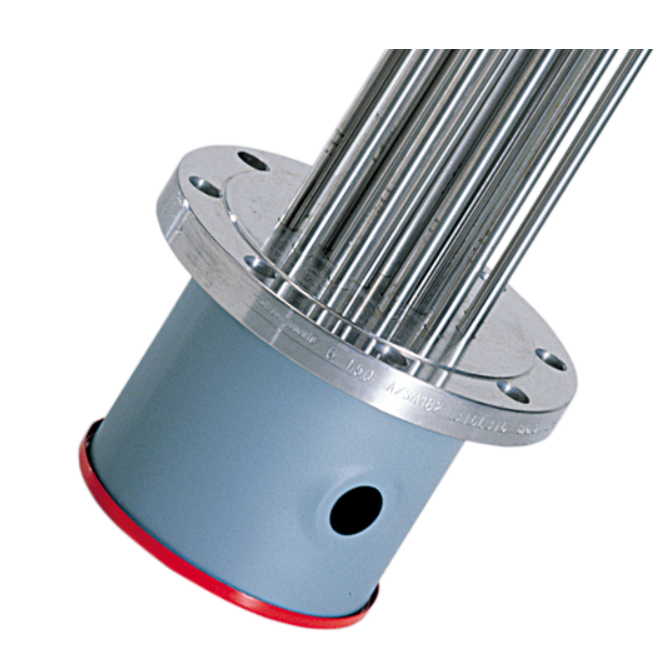

Watlow Circular Flange Tubular Heater
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2282-5805
Weight: 15.0 lb(s)
Circ Flange Voltage: 240
Circ Flange Wattage: 6,000
Watt Density: 16.0
B Dimension (Immersed element length): 25.5000
Number of Elements: 6 Elements
Electrical Phase configuration: 3 Phase - Wye wiring
Number of Circuits: 1
Flange Size: 4 Inch Flange
Flange Class: 150 lb.
Flange Material: 304 Stainless Steel Flange
Sheath Material: 304 SS
Baffles? With Baffles
Baffle Orientation: U Configuration, Inlet Away from Flange
Cold End Section below the Flange: 4.5625
Passivate wetted parts? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type K Thermocouple
Thermowell required? No
Mounting Orientation: Vertical Top
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 12.5625
Stand-off Terminal Enclosure? No
Terminal Enclosure: Explosion/Moisture Resist. (non-certified) (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2282-5805
Circ Flange Voltage: 240 Circ Flange Wattage: 6,000 Watt Density: 16.0 B Dimension (Immersed element length): 25.5000 Number of Elements: 6 Elements Electrical Phase configuration: 3 Phase - Wye wiring Number of Circuits: 1 Flange Size: 4 Inch Flange Flange Class: 150 lb. Flange Material: 304 Stainless Steel Flange Sheath Material: 304 SS Baffles? With Baffles Baffle Orientation: U Configuration, Inlet Away from Flange Cold End Section below the Flange: 4.5625 Passivate wetted parts? No Process Sensor: No Process Sensor Hi-Limit Sensor: Type K Thermocouple Thermowell required? No Mounting Orientation: Vertical Top Number of Hilimit Sensors (1 or 2): 1 First Hi-Limit Location: 12.5625 Stand-off Terminal Enclosure? No Terminal Enclosure: Explosion/Moisture Resist. (non-certified) (standard) CE Low Volt Directive required? No Nameplate Part Number: 2282-5805
Watlow Circular Flange Tubular Heater
Circ Flange Voltage: 240
Circ Flange Wattage: 6,000
Watt Density: 16.0
B Dimension (Immersed element length): 25.5000
Number of Elements: 6 Elements
Electrical Phase configuration: 3 Phase - Wye wiring
Number of Circuits: 1
Flange Size: 4 Inch Flange
Flange Class: 150 lb.
Flange Material: 304 Stainless Steel Flange
Sheath Material: 304 SS
Baffles? With Baffles
Baffle Orientation: U Configuration, Inlet Away from Flange
Cold End Section below the Flange: 4.5625
Passivate wetted parts? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type K Thermocouple
Thermowell required? No
Mounting Orientation: Vertical Top
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 12.5625
Stand-off Terminal Enclosure? No
Terminal Enclosure: Explosion/Moisture Resist. (non-certified) (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2282-5805
Process Connection Type:ASME 150#
Process Connection Location:Top
Measurement Minimum:0
Input Voltage:240 VAC
Heater Type:Tubular Heaters
Specifications
| Process Connection Type | ASME 150# |
| Process Connection Location | Top |
| Measurement Minimum | 0 |
| Input Voltage | 240 VAC |
| Heater Type | Tubular Heaters |
