Watlow Circular Plug Standard Tubular Heater
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2279-4983
Weight: 20.0 lb(s)
Circ Plug Size: 1 1/4 Inch Plug - 1 Element
Circ Plug Voltage: 480
Circ Plug Wattage: 6,000
Watt Density: 45.1

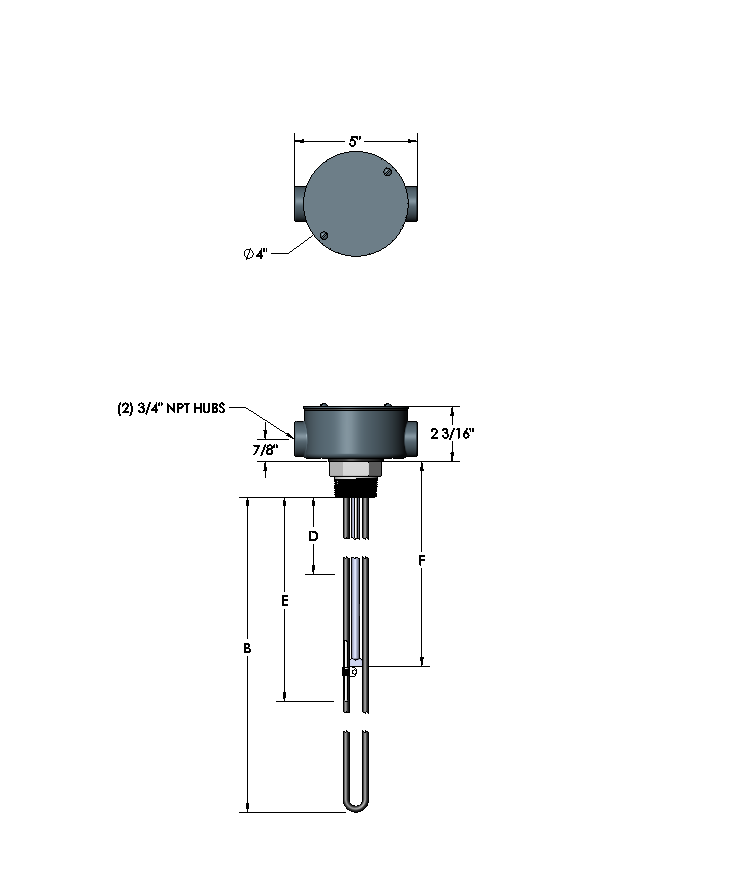

B Dimension (Immersed element length): 32.5000
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.5625
Element Passivation? No
Element End Seal: Epoxy, 130 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Mounting Orientation: Horizontal
Pilot Light: (not avail. with CSA, CE or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Nameplate Part Number: 2279-4983 CS2
Old P/N: 2-10-27-26MA
Circ Plug Size: 1 1/4 Inch Plug - 1 Element Circ Plug Voltage: 480 Circ Plug Wattage: 6,000 Watt Density: 45.1 B Dimension (Immersed element length): 32.5000 Electrical Phase configuration: 3 Phase - Delta wiring Plug Material: 304 Stainless Steel, Standard Class Element Material: Alloy 800 Cold Section below Plug: 3.5625 Element Passivation? No Element End Seal: Epoxy, 130 degree Celsius Process Sensor: No Process Sensor Hi-Limit Sensor: Type J Thermocouple Mounting Orientation: Horizontal Pilot Light: (not avail. with CSA, CE or UL) No Terminal Enclosure: Moisture Resistant (standard) Nameplate Part Number: 2279-4983 CS2
Watlow Circular Plug Standard Tubular Heater
Circ Plug Size: 1 1/4 Inch Plug - 1 Element
Circ Plug Voltage: 480
Circ Plug Wattage: 6,000
Watt Density: 45.1
B Dimension (Immersed element length): 32.5000
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.5625
Element Passivation? No
Element End Seal: Epoxy, 130 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Mounting Orientation: Horizontal
Pilot Light: (not avail. with CSA, CE or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Nameplate Part Number: 2279-4983 CS2
Old P/N: 2-10-27-26MA
Measurement Minimum:0
Input Voltage:480 VAC
Heater Type:Tubular Heaters
Specifications
Measurement Minimum | 0 |
Input Voltage | 480 VAC |
Heater Type | Tubular Heaters |
