  3. Flanged Circulation Heater, 6" 150LB, 35KW
Public Pricelist (v2)

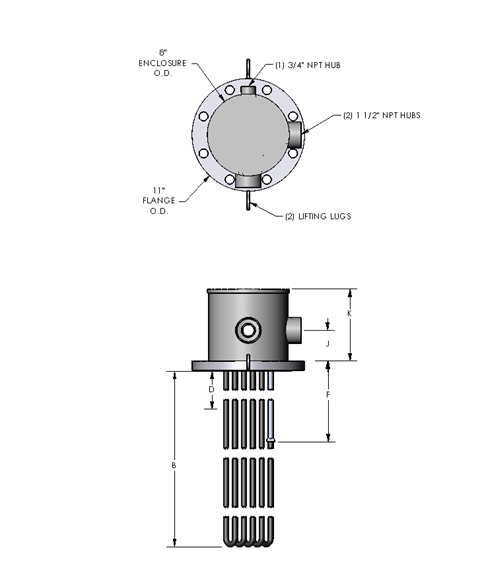

Representative photo. Please check item description for details.

Flanged Circulation Heater, 6" 150LB, 35KW

https://www.branom.com/web/image/product.template/487052/image_1920?unique=785a3ed
(0 review)

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2278-3112

Weight: 100.0 lb(s)

On Hand: 0

Flange Voltage: 240
Flange Wattage: 35,000
Watt Density: 45.8
B Dimension (Immersed element length): 21.3750
Number of Elements: 15 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 5
Flange Size: 6 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 4.5000
Passivate wetted parts? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 2278-3112 FL7

Flange Voltage: 240
Flange Wattage: 35,000
Watt Density: 45.8
B Dimension (Immersed element length): 21.3750
Number of Elements: 15 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 5
Flange Size: 6 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 4.5000
Passivate wetted parts? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 2278-3112  FL7

  • Measurement Maximum
  • Process Connection Type
  • Measurement Minimum
  • Input Voltage
  • Heater Type

This combination does not exist.

Contact Us

Flanged Circulation Heater, 6" 150LB, 35KW

  • Measurement Maximum
  • Process Connection Type
  • Measurement Minimum
  • Input Voltage
  • Heater Type

$ 4,956.36 4956.36 USD $ 4,956.36

$ 4,956.36

Not Available For Sale

This combination does not exist.

Flange Voltage: 240
Flange Wattage: 35,000
Watt Density: 45.8
B Dimension (Immersed element length): 21.3750
Number of Elements: 15 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 5
Flange Size: 6 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 4.5000
Passivate wetted parts? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 2278-3112 FL7

Measurement Maximum:0
Process Connection Type:ASME 150#
Measurement Minimum:0
Input Voltage:240 VAC
Heater Type:Immersion Heaters

Specifications

Measurement Maximum 0
Process Connection Type ASME 150#
Measurement Minimum 0
Input Voltage 240 VAC
Heater Type Immersion Heaters
