Watlow AF Style Ungrounded Thermocouple (Af-2018933)
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2275-3945
Weight: 1.0 lb(s)
Sheath Outside Diameter [in] G-.125 Inch
Junction Type U - Single Ungrounded
Sheath Material F - 316 and 316L SS (Dual Certified)
Calibraton Type Type J
Limits of Error Standard - (±2.2 or ±0.75%) C°
Mounting Options Q - Adjustable w/Lava Gland 1/8 NPT

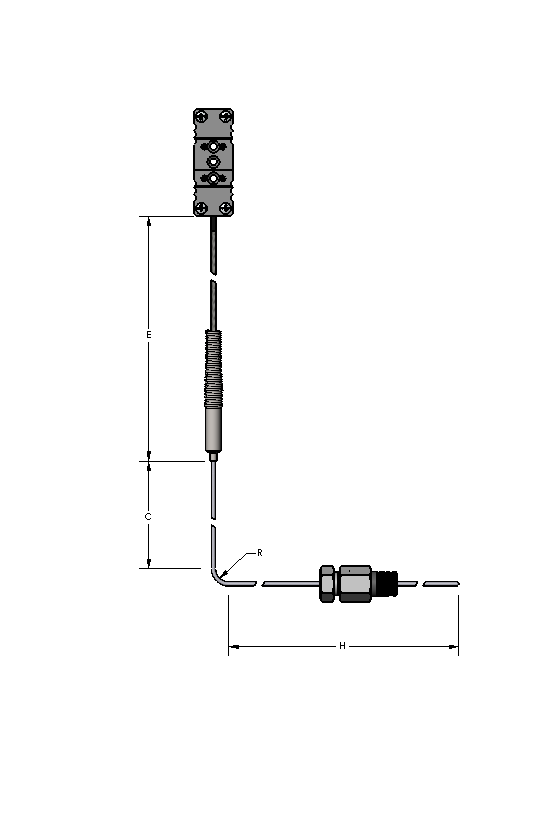

Bend Option Bend 90 Degrees
Bend Radius .375"
Hot Leg Length [in] (H) 2.500
Cold Leg Length [in] (C) 2.000
Lead Wire Construction K - Fiberglass SS Overbraid, Stranded
Lead Wire Length [in] 12
Lead Wire Termination H - Miniature Male Plug With Mating Conn
Cold End Seal/Potting 300°F Epoxy
Transition Style AF - 1/4" with Spring (700), Crimped
Gauge Size 24 Gauge
Calibrate/Cert Type No Certification Required
MI Cable Material Cert (Y/N) No
