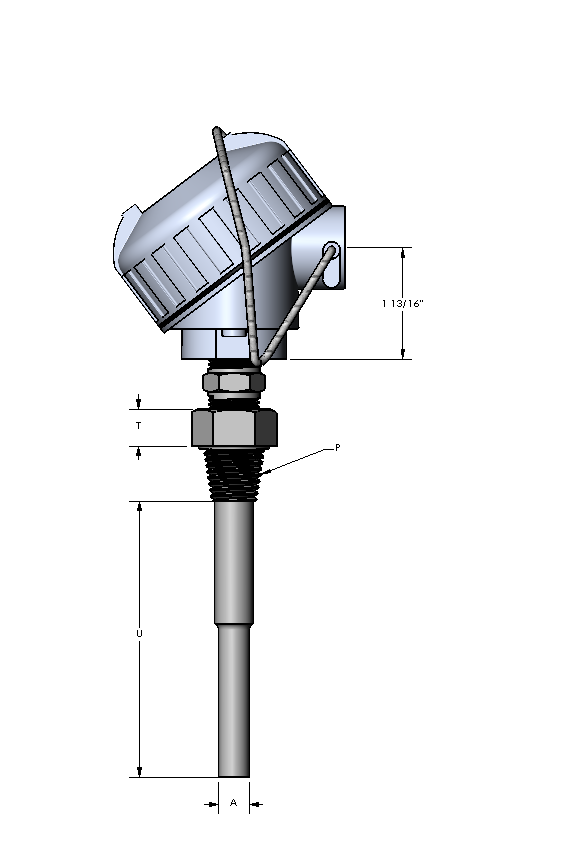

Watlow 2-Wire Rtd w/Cast Alum Connection Head, 3.5" SS Spring Loaded Sheath, 1/2"NPT w/Thermowell

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2274-4386

Weight: 3.0 lb(s)

RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type A - 100 ohms Single 2-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Thermowell Standard Thermowell
Thermowell Style TB - Bimetalic
Immersion Length [in] (U) 4.000
Thermowell Material C - 316 SS
Process Connection (P) C - 1/2 inch NPT
Lag Dimension [in] (T) 1
Bore Diameter 0.260 Inch
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style A - Terminal Block/Strip
Fitting H-Spring Loaded, Double Threaded, 316SS 1/2 NPT
Sheath Length 5.000
Tolerance [in] ± 0.125
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No

RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type K = 316/316L SS Mineral Insulated
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Thermowell No Thermowell - Sensor Only
Head Type E - Cast Aluminum
Conduit Connection B - 1/2 inch NPT
Termination Style A - Terminal Block/Strip
Fitting H-Spring Loaded, Double Threaded, 316SS 1/2 NPT
Sheath Length 3.500
Tolerance [in] ± 0.125
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
