Watlow .75" Diameter Firerod Heater, 8.5" Long, 3000 Watts, 240 VAC
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2271-3081
Weight: 1.25 lb(s)

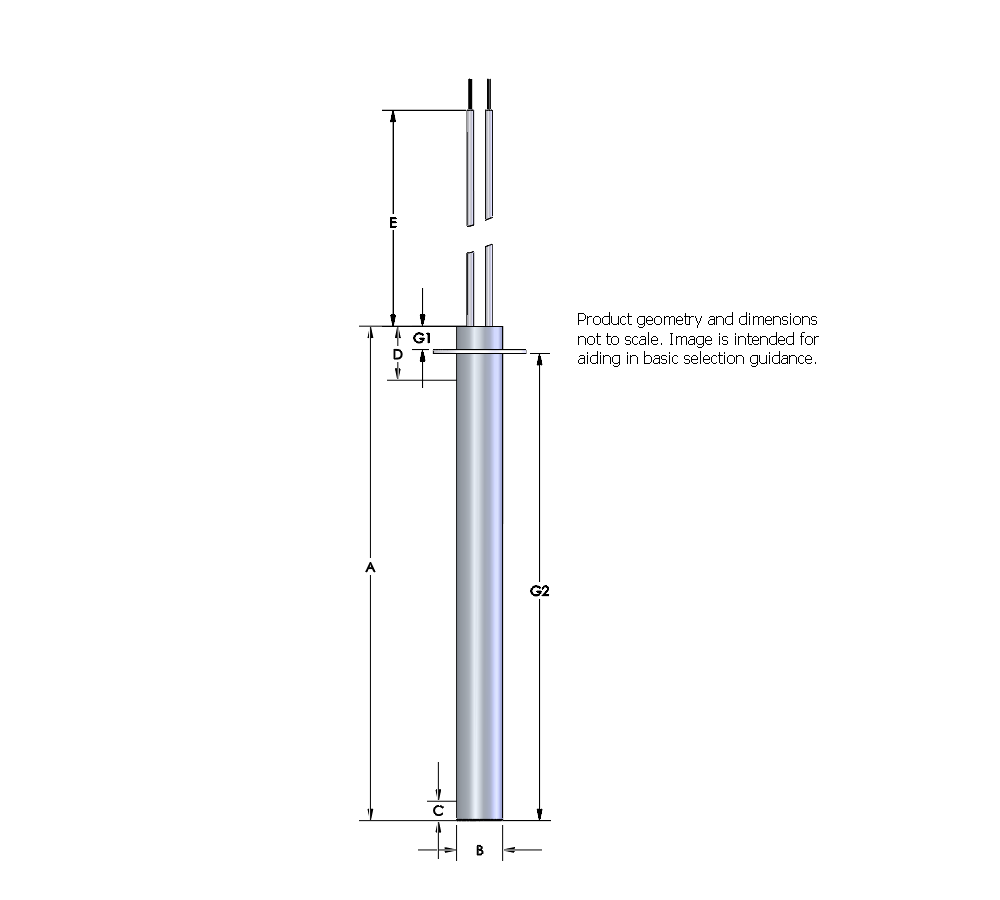

Diameter [in] (B) .746" +/- .002"
Overall Length [in] (A) 8.500
Length Tolerance + /- 2%
Voltage [V] 240
Power [W] 3,000
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal PTFE
Lead Type PTFE
Lead Length [in] (E) 16
Thermocouple A = Center Core
T/C Type K = Chromel-P / Alumel
T/C Length [in] 16
Sheath Materials Incoloy 800
Mounting Options Double 304 SS Threaded Fitting
Attachment Method W = Weld
LINE 4 2271-3081
CE No
Lead End No Heat [in] 'NOM' (D) 2.125
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 214
Watlow .75" Diameter Firerod Heater, 8.5" Long, 3000 Watts, 240 VAC
Diameter [in] (B) .746" +/- .002"
Overall Length [in] (A) 8.500
Length Tolerance + /- 2%
Voltage [V] 240
Power [W] 3,000
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal PTFE
Lead Type PTFE
Lead Length [in] (E) 16
Thermocouple A = Center Core
T/C Type K = Chromel-P / Alumel
T/C Length [in] 16
Sheath Materials Incoloy 800
Mounting Options Double 304 SS Threaded Fitting
Attachment Method W = Weld
LINE 4 2271-3081
CE No
Lead End No Heat [in] 'NOM' (D) 2.125
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 214
Measurement Minimum:0
Input Voltage:240 VAC
Heater Type:Cartridge Insertion Heaters
Specifications
| Measurement Minimum | 0 |
| Input Voltage | 240 VAC |
| Heater Type | Cartridge Insertion Heaters |
