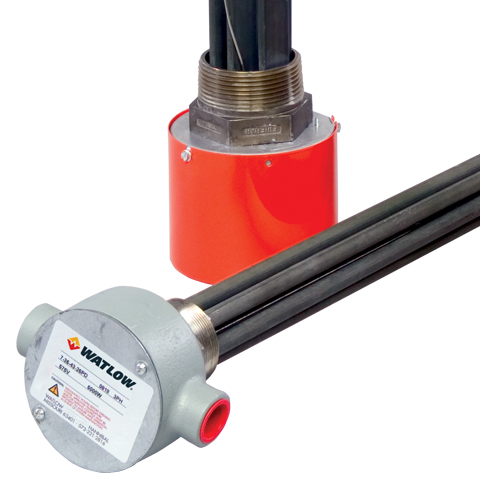

Watlow 1" Tubular Plug Heater

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2270-3720

Weight: 0.01 lb(s)

Plug Size: 1 Inch Plug - 1 Element
Plug Voltage: 120
Plug Wattage: 750
Watt Density: 20.6
B Dimension (Immersed element length): 15.3750
Electrical Phase configuration: 1 Phase - Parallel wiring
Plug Material: Steel, Standard Class
Element Material: CC Steel
Cold Section below Plug: 3.0000
Foldback the element? Yes
C Dimension for Foldback: 6.1250
Element Passivation? No
Element End Seal: Silicone Resin, 105 degree Celsius
Process Sensor: Type 2 Thermostat, 30-250°F
Hi-Limit Sensor: No Hi-Limit Sensor
Pilot Light: (not avail. with CSA, CE or UL) Yes
Terminal Enclosure: General Purpose (incl. CSA)
Nameplate Part Number: 2270-3720

Plug Size: 1 Inch Plug - 1 Element
Plug Voltage: 120
Plug Wattage: 750
Watt Density: 20.6
B Dimension (Immersed element length): 15.3750
Electrical Phase configuration: 1 Phase - Parallel wiring
Plug Material: Steel, Standard Class
Element Material: CC Steel
Cold Section below Plug: 3.0000
Foldback the element? Yes
C Dimension for Foldback: 6.1250
Element Passivation? No
Element End Seal: Silicone Resin, 105 degree Celsius
Process Sensor: Type 2 Thermostat, 30-250°F
Hi-Limit Sensor: No Hi-Limit Sensor
Pilot Light: (not avail. with CSA, CE or UL) Yes
Terminal Enclosure: General Purpose (incl. CSA)
Nameplate Part Number: 2270-3720
