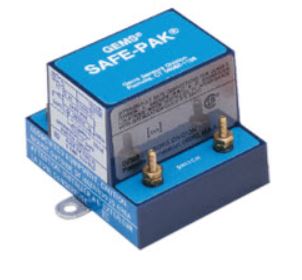

Gems Safe-Pak, Intrinsically Safe Relay

https://www.branom.com/web/image/product.template/179199/image_1920?unique=25b6789
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 22445

Weight: 1.1 lb(s)

On Hand: 0
On Order: 2

The Low Sensitivity Electronic SAFE-PAK ® eliminate the need for explosion proof enclosures. No purging is required. Sensors closures up to 1000 ohms resistance control resitive loads to 5A at 120 VAC. 120 VAC, N.O. model.

  • Sku: 22445
  • Model: SAFE-PAK
  • Function: Relay
  • Protection: Intrinsically Safe
  • Operating Voltage: 95 to 135 VAC
  • Turn-off Sensitivity: 1M ohms
  • Turn-on Sensitivity: 400K ohms
  • Maximum Input DC Voltage: N/A
  • Maximum Input Current: N/A
  • Load Current: 5 amps
  • OutputLeakageCurrent: 6 mA at 120 VAC
  • Load Voltage: 95 to 135 VAC
  • Capacitance (micro Farads): N/A
  • Inductance (milli Henry): N/A
  • Switch Operation: SPST Normally Open
  • Minimum Temperature: 0°F
  • Maximum Temperature: 120°F
  • Approvals: UL, CSA
  • Weight: 1.0625
