Watlow Firerod Heater, 3/8", 220V, 500W
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2237-3471
Weight: 0.12 lb(s)

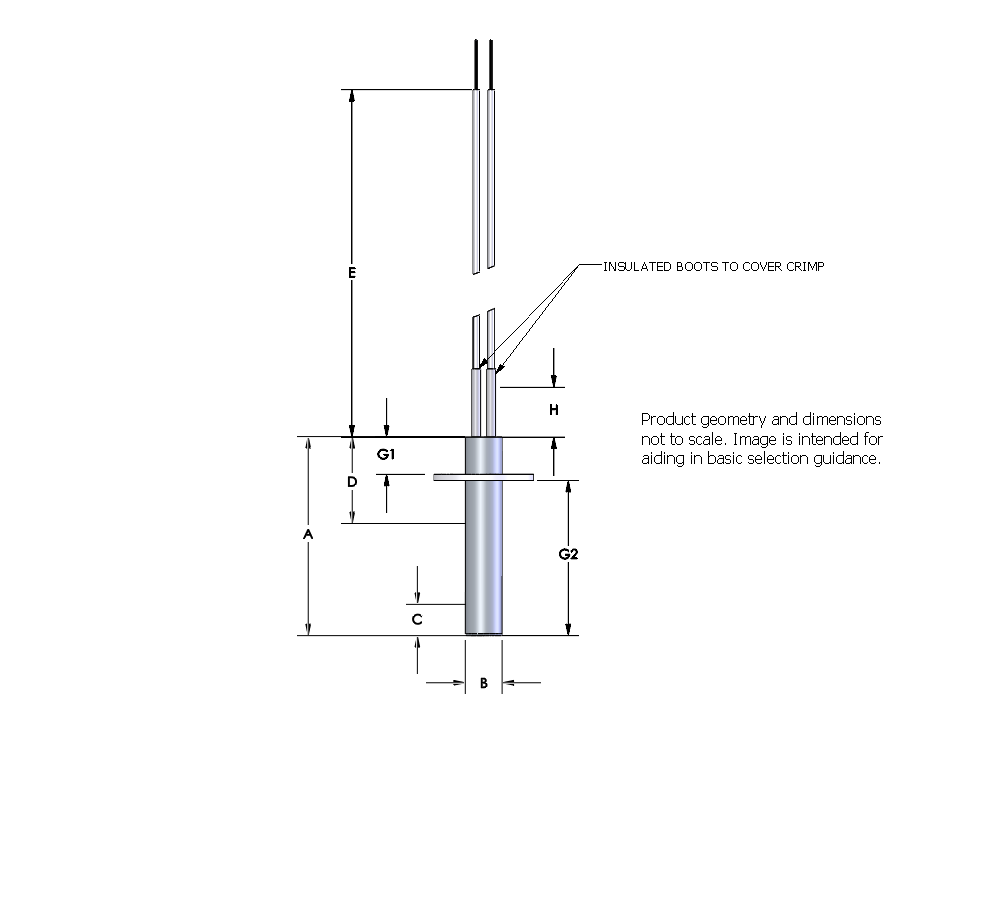

Diameter [in] (B) .371" +/- .002"
Overall Length [in] (A) 7.000
Length Tolerance + /- 2%
Voltage [V] 220
Power [W] 500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type High Temp (MGT)
Lead Length [in] (E) 24
Thermocouple B = On Sheath
T/C Type K = Chromel-P / Alumel
T/C Length [in] 24
Sheath Materials Incoloy 800
Mounting Options Small Flange (FS)
Distance From Disk End [in] (G2) 6.250
Attachment Method S = Stake
CE No
Lead End No Heat [in] 'NOM' (D) 1.000
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 78
Watlow Firerod Heater, 3/8", 220V, 500W
Diameter [in] (B) .371" +/- .002"
Overall Length [in] (A) 7.000
Length Tolerance + /- 2%
Voltage [V] 220
Power [W] 500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type High Temp (MGT)
Lead Length [in] (E) 24
Thermocouple B = On Sheath
T/C Type K = Chromel-P / Alumel
T/C Length [in] 24
Sheath Materials Incoloy 800
Mounting Options Small Flange (FS)
Distance From Disk End [in] (G2) 6.250
Attachment Method S = Stake
CE No
Lead End No Heat [in] 'NOM' (D) 1.000
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 78
Measurement Maximum:0
Measurement Minimum:0
Heater Type:Cartridge Insertion Heaters
Specifications
| Measurement Maximum | 0 |
| Measurement Minimum | 0 |
| Heater Type | Cartridge Insertion Heaters |
