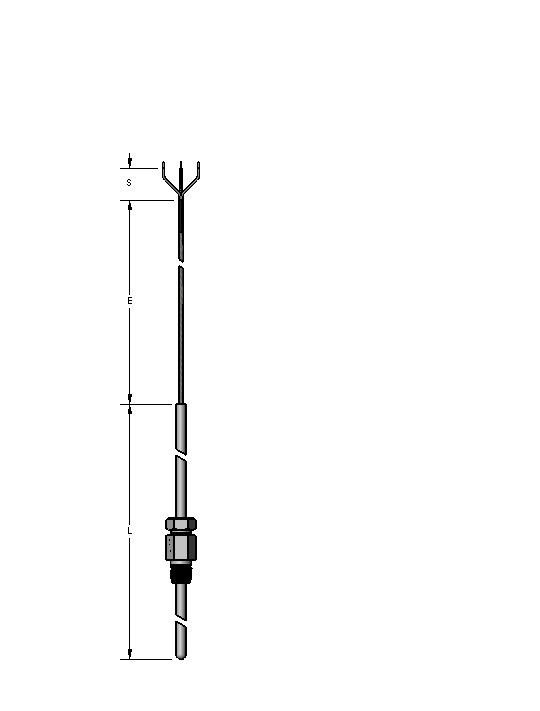

| OBSOLETE | RB Style RTD 1000 OHM 3 Wire (2214-9223)
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2214-9223
Weight: 0.5 lb(s)
RTD Sensor Style RB Style RTD
Outside Diameter [in] G - .125 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type J - 1000 ohms Single 2-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Mounting Options None
Bend Option Straight Length
Sheath Length [L] (In) 3.000
Lead Wire Construction B - PFA Stranded
Lead Wire Length in inches 240
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 2.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
| OBSOLETE | RB Style RTD 1000 OHM 3 Wire (2214-9223)
RTD Sensor Style RB Style RTD
Outside Diameter [in] G - .125 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type J - 1000 ohms Single 2-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Mounting Options None
Bend Option Straight Length
Sheath Length [L] (In) 3.000
Lead Wire Construction B - PFA Stranded
Lead Wire Length in inches 240
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 2.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Measurement Maximum:0
Process Connection Type:NPT
Stem Length:3 in (76.2 mm)
Measurement Minimum:0
Specifications
| Measurement Maximum | 0 |
| Process Connection Type | NPT |
| Stem Length | 3 in (76.2 mm) |
| Measurement Minimum | 0 |
