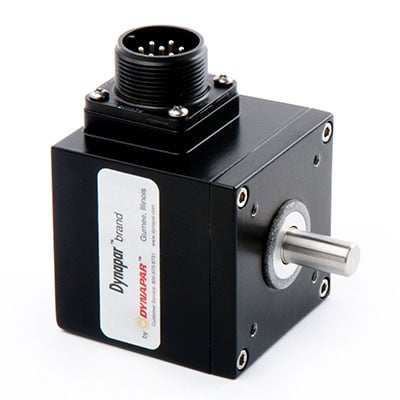

Dynapar Incremental Encoder, 3/8in Shaft, 5-26 VDC, 1200 PPR, Single Ended Shaft
Manufacturer: Dynapar Corporation
Mfg Product Code: 2212001000
Weight: 2.9 lb(s)
Encoder, Incremental, 5-26V, 1200 PPR 3/8" Single Ended Shaft
The 22 NexGen Qube encoder is built tough for industrial applications like measuring cut-to-length or size for the Textile, Metal, Lumber and Rubber Industries. Its size makes it flexible for use in industrial applications where measuring mechanical motion is critical. The redesign delivers a more rugged encoder. The upgraded features such as increase shaft loading, expanded resolution (3600 PPR), a phased array ASIC sensor technology which significantly reduces the number of board level components in the encoder and the improved shock spec as well as an improved vibration spec provides a more robust encoder that ultimately allows for a more reliable encoder in an industrial application while increasing product lifetime.
General
- Feedback Type: Incremental
- Technology Sensing Type: Optical
- Weight (Pounds): 2.9
Mechanical
- Connection Location: Radial
- Connection Type: Connector
- Disk Material: Aluminum
- Flange Material: Aluminum
- Housing Material: Aluminum
- Maximum Operating Speed (RPM): 6000
- Shaft / Bore Material: Stainless Steel
- Shaft / Bore Size (mm): 9.525
- Shaft Loading Axial (mm): 355.86
- Shaft Loading Radial (mm): 355.86
- Shaft Type: Shafted
- Special Shaft Feature: Single Shaft with Shaft Seal
- Starting Torque (Ncm): 2.82
- Termination: 6 Pin MS
Electrical
- Duty Cycle: 45-55%
- Incremental Signals: A, B
- Input Voltage: 5-26 VDC
- Line Driver Type: 7273
- Maximum Frequency Response (KHz): 125
- Output Signal: Open Collector w/ 2.2K Ohm
- Resolution (PPR): 35
- Reverse Polarity Protection: Yes
- Short Circuit Protection: Yes
Environmental
- Hazardous Area Rating: [None]
- Hazardous Area Rating Certification: [None]
- Housing Protection Level: IP67
- Humidity Non-Condensing (%): 98
- Maximum Operating Temperature (°C): 100
- Maximum Storage Temperature (°C): 100
- Minimum Operating Temperature (°C): -40
- Minimum Storage Temperature (°C): -40
- Noise Immunity Testing Specification: EN61326-1
- Shock Resistance: 100G, 11msec
- Vibration Resistance: 20G, 5-2000Hz
