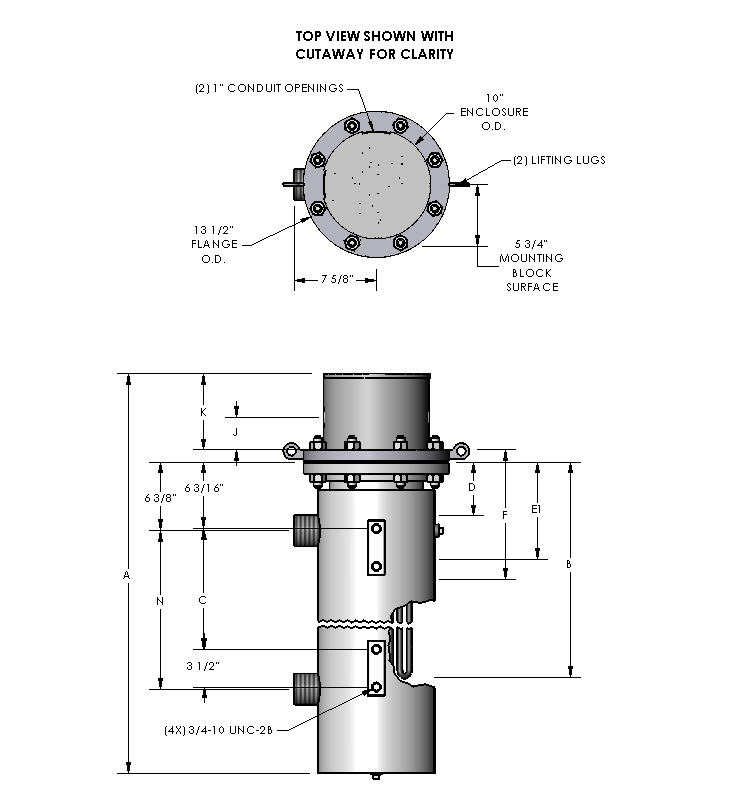

Watlow Circulation Flange Heater
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2212-9350
Weight: 20.0 lb(s)
Circ Flange Voltage: 480
Circ Flange Wattage: 25,000
Watt Density: 5.0
B Dimension (Immersed element length): 75.1250
Number of Elements: 24 Elements
Electrical Phase configuration: 3 Phase - Wye wiring
Number of Circuits: 1
Flange Size: 8 Inch Flange
Flange Class: 150 lb.
Flange Material: 304 Stainless Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 6.3750
Sheath Passivation? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type K Thermocouple
Thermowell required? Yes
Mounting Orientation: Vertical Top
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 7.3750
Stand-off Terminal Enclosure? No
Terminal Enclosure: CSA Enclosure 4 (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2212-9350 CF7
Watlow Circulation Flange Heater
Circ Flange Voltage: 480
Circ Flange Wattage: 25,000
Watt Density: 5.0
B Dimension (Immersed element length): 75.1250
Number of Elements: 24 Elements
Electrical Phase configuration: 3 Phase - Wye wiring
Number of Circuits: 1
Flange Size: 8 Inch Flange
Flange Class: 150 lb.
Flange Material: 304 Stainless Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 6.3750
Sheath Passivation? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type K Thermocouple
Thermowell required? Yes
Mounting Orientation: Vertical Top
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 7.3750
Stand-off Terminal Enclosure? No
Terminal Enclosure: CSA Enclosure 4 (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2212-9350 CF7
Process Connection Type:ASME 150#
Process Connection Location:Top
Measurement Minimum:0
Input Voltage:480 VAC
Heater Type:Tubular Heaters
Specifications
| Process Connection Type | ASME 150# |
| Process Connection Location | Top |
| Measurement Minimum | 0 |
| Input Voltage | 480 VAC |
| Heater Type | Tubular Heaters |
