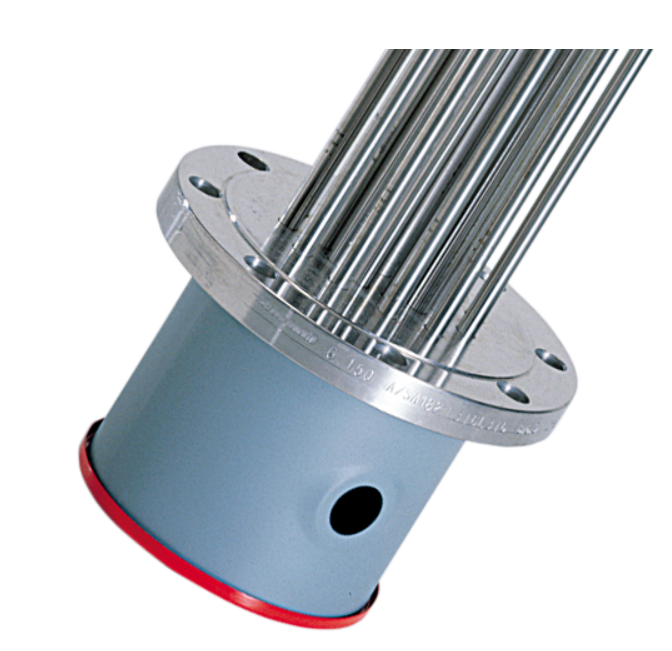

Watlow Circular Flange Tubular Heater
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2211-3563
Weight: 20.0 lb(s)
Circ Flange Voltage: 480
Circ Flange Wattage: 6,000
Watt Density: 54.2
B Dimension (Immersed element length): 18.0000
Number of Elements: 3 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 1
Flange Size: 3 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 4.5625
Sheath Passivation? No
Process Sensor: Type 2 Thermostat, 30-250°F
Hi-Limit Sensor: No Hi-Limit Sensor
Celsius Dial Plate? No
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 2211-3563 CF6
Watlow Circular Flange Tubular Heater
Circ Flange Voltage: 480
Circ Flange Wattage: 6,000
Watt Density: 54.2
B Dimension (Immersed element length): 18.0000
Number of Elements: 3 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 1
Flange Size: 3 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 4.5625
Sheath Passivation? No
Process Sensor: Type 2 Thermostat, 30-250°F
Hi-Limit Sensor: No Hi-Limit Sensor
Celsius Dial Plate? No
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 2211-3563 CF6
Process Connection Type:ASME 150#
Process Connection Location:Top
Measurement Minimum:0
Input Voltage:480 VAC
Heater Type:Tubular Heaters
Specifications
| Process Connection Type | ASME 150# |
| Process Connection Location | Top |
| Measurement Minimum | 0 |
| Input Voltage | 480 VAC |
| Heater Type | Tubular Heaters |
