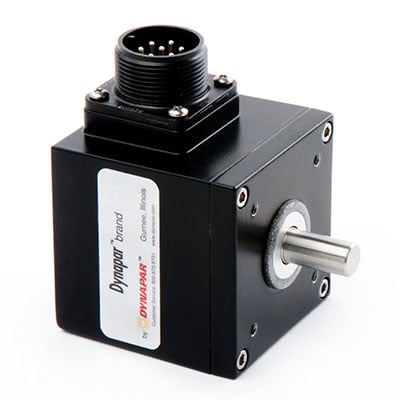

Dynapar Incremental Encoder, 3/8in Shaft, 5-26 VDC, 100 PPR, 6 pin MS

Manufacturer: Dynapar SPT/Joslyn Clark/Namco

Mfg Product Code: 2201001000

Weight: 2.9 lb(s)

The 22 NexGen Qube encoder is built tough for industrial applications like measuring cut-to-length or size for the Textile, Metal, Lumber and Rubber Industries. Its size makes it flexible for use in industrial applications where measuring mechanical motion is critical. The redesign delivers a more rugged encoder. The upgraded features such as increase shaft loading, expanded resolution (3600 PPR), a phased array ASIC sensor technology which significantly reduces the number of board level components in the encoder and the improved shock spec as well as an improved vibration spec provides a more robust encoder that ultimately allows for a more reliable encoder in an industrial application while increasing product lifetime.

Features

General

• Feedback Type: Incremental
• Technology Sensing Type: Optical
• Weight (Pounds): 2.9

Mechanical

• Connection Location: Radial
• Connection Type: Pigtail Cable
• Disk Material: Aluminum
• Flange Material: Aluminum
• Housing Material: Aluminum
• Maximum Operating Speed (RPM): 6000
• Shaft / Bore Material: Stainless Steel
• Shaft / Bore Size (mm): 9.525
• Shaft Loading Axial (mm): 355.86
• Shaft Loading Radial (mm): 355.86
• Shaft Type: Shafted
• Special Shaft Feature: Single Shaft with Shaft Seal
• Starting Torque (Ncm): 2.82
• Termination: 3 ft Sealed Cable

Electrical

• Duty Cycle: 45-55%
• Incremental Signals: A, B
• Input Voltage: 5-26 VDC
• Line Driver Type: 7273
• Maximum Frequency Response (KHz): 125
• Output Signal: Open Collector w/ 2.2K Ohm
• Resolution (PPR): 12
• Reverse Polarity Protection: Yes
• Short Circuit Protection: Yes

Environmental

• Hazardous Area Rating: [None]
• Hazardous Area Rating Certification: [None]
• Housing Protection Level: IP67
• Humidity Non-Condensing (%): 98
• Maximum Operating Temperature (°C): 100
• Maximum Storage Temperature (°C): 100
• Minimum Operating Temperature (°C): -40
• Minimum Storage Temperature (°C): -40
• Noise Immunity Testing Specification: EN61326-1
• Shock Resistance: 100G, 11msec
• Vibration Resistance: 20G, 5-2000Hz
