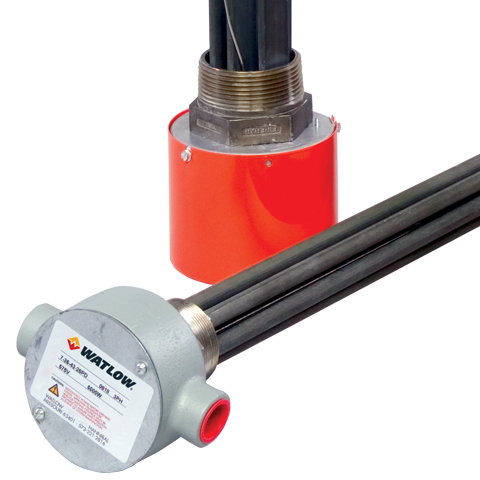

| OBSOLETE | 1 1/4" Screw Plug Heater
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2200-6838
Weight: 20.0 lb(s)
Screw Plug Standard
Configuration Details
Plug Size: 1 1/4 Inch Plug - 1 Element
Plug Voltage: 240
Plug Wattage: 5,700
Watt Density: 29.8
B Dimension (Immersed element length): 45.1250
Electrical Phase configuration: 3 Phase - Wye wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.5625
Element Passivation? No
Element End Seal: Epoxy, 130 degree Celsius
Process Sensor: Type 7A Thermostat, 100-550°F
Hi-Limit Sensor: No Hi-Limit Sensor
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Explosion/Moisture Resist. (non-certified) (standard)
Nameplate Part Number: 2200-6838
| OBSOLETE | 1 1/4" Screw Plug Heater
Screw Plug Standard
Configuration Details
Plug Size: 1 1/4 Inch Plug - 1 Element
Plug Voltage: 240
Plug Wattage: 5,700
Watt Density: 29.8
B Dimension (Immersed element length): 45.1250
Electrical Phase configuration: 3 Phase - Wye wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.5625
Element Passivation? No
Element End Seal: Epoxy, 130 degree Celsius
Process Sensor: Type 7A Thermostat, 100-550°F
Hi-Limit Sensor: No Hi-Limit Sensor
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Explosion/Moisture Resist. (non-certified) (standard)
Nameplate Part Number: 2200-6838
Measurement Maximum:0
Process Connection Type:NPT
Measurement Minimum:0
Watts:5700
Heater Type:Immersion Heaters
Specifications
| Measurement Maximum | 0 |
| Process Connection Type | NPT |
| Measurement Minimum | 0 |
| Watts | 5700 |
| Heater Type | Immersion Heaters |
