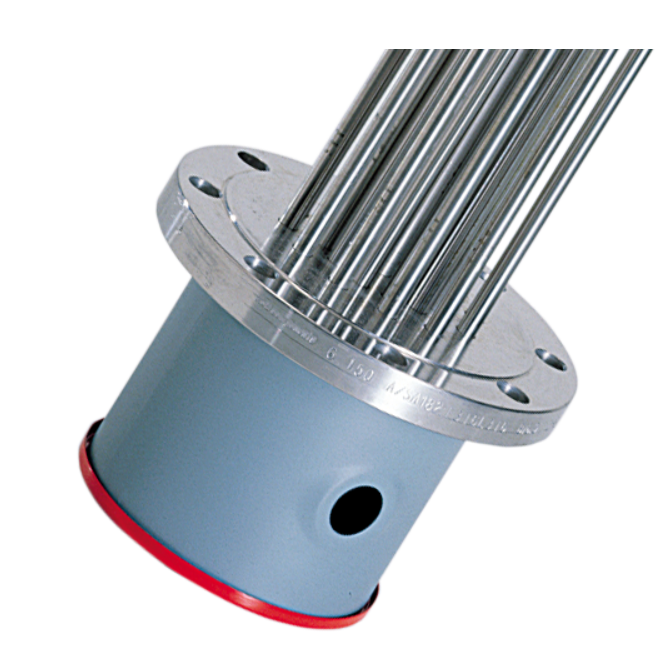

Watlow Tubular Flange Heater

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2198-2956

Weight: 20.0 lb(s)

Flange Voltage: 230
Flange Wattage: 3,000
Watt Density: 45.0
B Dimension (Immersed element length): 12.0000
Number of Elements: 3 Elements
Electrical Phase configuration: 1 Phase - Parallel wiring
Number of Circuits: 1
Flange Size: 3 Inch Flange
Flange Class: 150 lb.
Flange Material: 316 Stainless Steel Flange
Sheath Material: 316 SS
Baffles? No Baffles
Cold End Section below the Flange: 4.0000
Sheath Passivation? Yes
Process Sensor: Type 2 Thermostat, 30-250°F
Hi-Limit Sensor: No Hi-Limit Sensor
Celsius Dial Plate? No
Stand-off Terminal Enclosure? No
Terminal Enclosure: CSA - Explosion Proof (standard)
Process Temperature (F): (max. 176 degrees) 86
Max. Working Pressure (PSIG): 15
Heating Media: (max. of 15 characters) WATER
Mounting Orientation: Horizontal
CE Low Volt Directive required? No
Nameplate Part Number: 2198-2956 FL6
