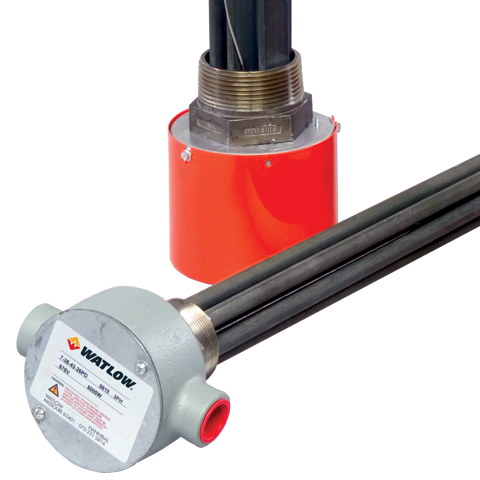

Watlow 2 1/2" Tubular Plug Heater
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2196-7942
Weight: 0.01 lb(s)
Plug Size: 2 1/2 Inch Plug - 3 Elements
Plug Voltage: 480
Plug Wattage: 15,000
Watt Density: 46.3
B Dimension (Immersed element length): 39.8750
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.9375
Element Passivation? No
Element End Seal: Silicone Resin, 105 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Pilot Light: (not avail. with CSA, CE or UL) No
Terminal Enclosure: CSA Enclosure 4 (standard)
Nameplate Part Number: 2196-7942 SP7
Watlow 2 1/2" Tubular Plug Heater
Plug Size: 2 1/2 Inch Plug - 3 Elements
Plug Voltage: 480
Plug Wattage: 15,000
Watt Density: 46.3
B Dimension (Immersed element length): 39.8750
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: 304 Stainless Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 3.9375
Element Passivation? No
Element End Seal: Silicone Resin, 105 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? Yes
Pilot Light: (not avail. with CSA, CE or UL) No
Terminal Enclosure: CSA Enclosure 4 (standard)
Nameplate Part Number: 2196-7942 SP7
Process Connection Type:NPT
Process Connection Size:2-1/2"
Measurement Minimum:0
Input Voltage:480 VAC
Watts:15000
Heater Type:Tubular Heaters
Specifications
| Process Connection Type | NPT |
| Process Connection Size | 2-1/2" |
| Measurement Minimum | 0 |
| Input Voltage | 480 VAC |
| Watts | 15000 |
| Heater Type | Tubular Heaters |
