Watlow .75" Diameter Firerod Heater

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2193-0788

Weight: 1.0 lb(s)

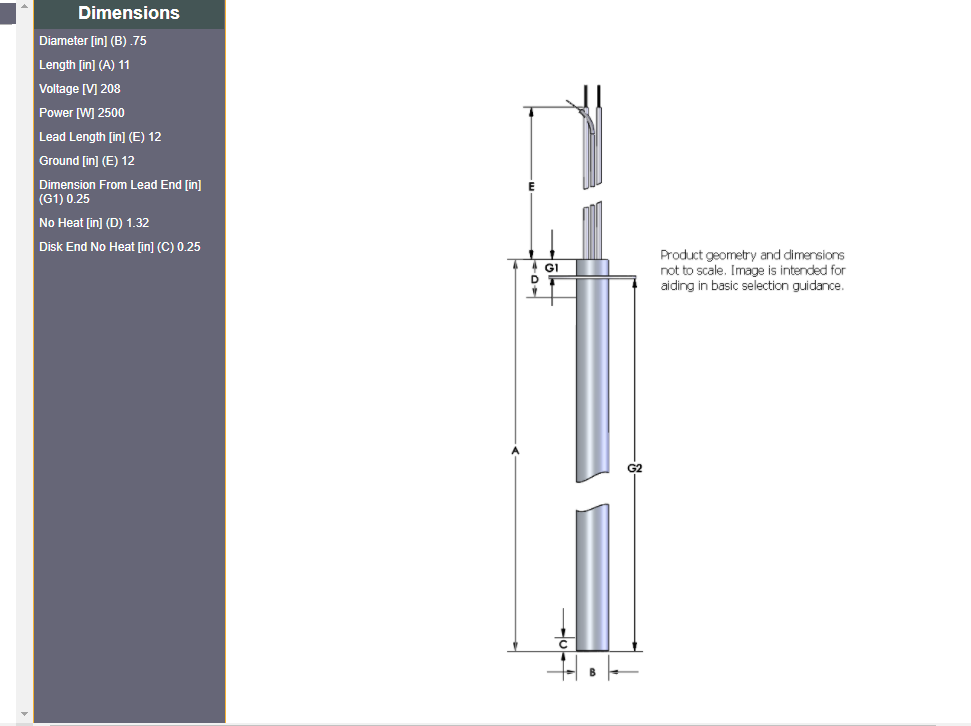

Diameter [in] (B) .746" +/- .002"
Overall Length [in] (A) 11.000
Length Tolerance + /- 2%
Voltage [V] 208
Power [W] 2,500
Wattage Tolerance [%] + 5%,- 10%
Terminations Swaged In Leads
End Seal No Seal
Lead Type Fiberglass (GGS)
Lead Length [in] (E) 12
Ground Lead Length [in] (E) 12
Sheath Materials Incoloy 800
Mounting Options Large Flange (FL)
Distance From Lead End [in] (G1) 0.250
Attachment Method X = Silver Solder
LINE 4 2193-0788
CE No
Lead End No Heat [in] 'NOM' (D) 1.320
Disk End No Heat [in] 'NOM' (C) 0.25
Watt Density [w/in2] nom 113
