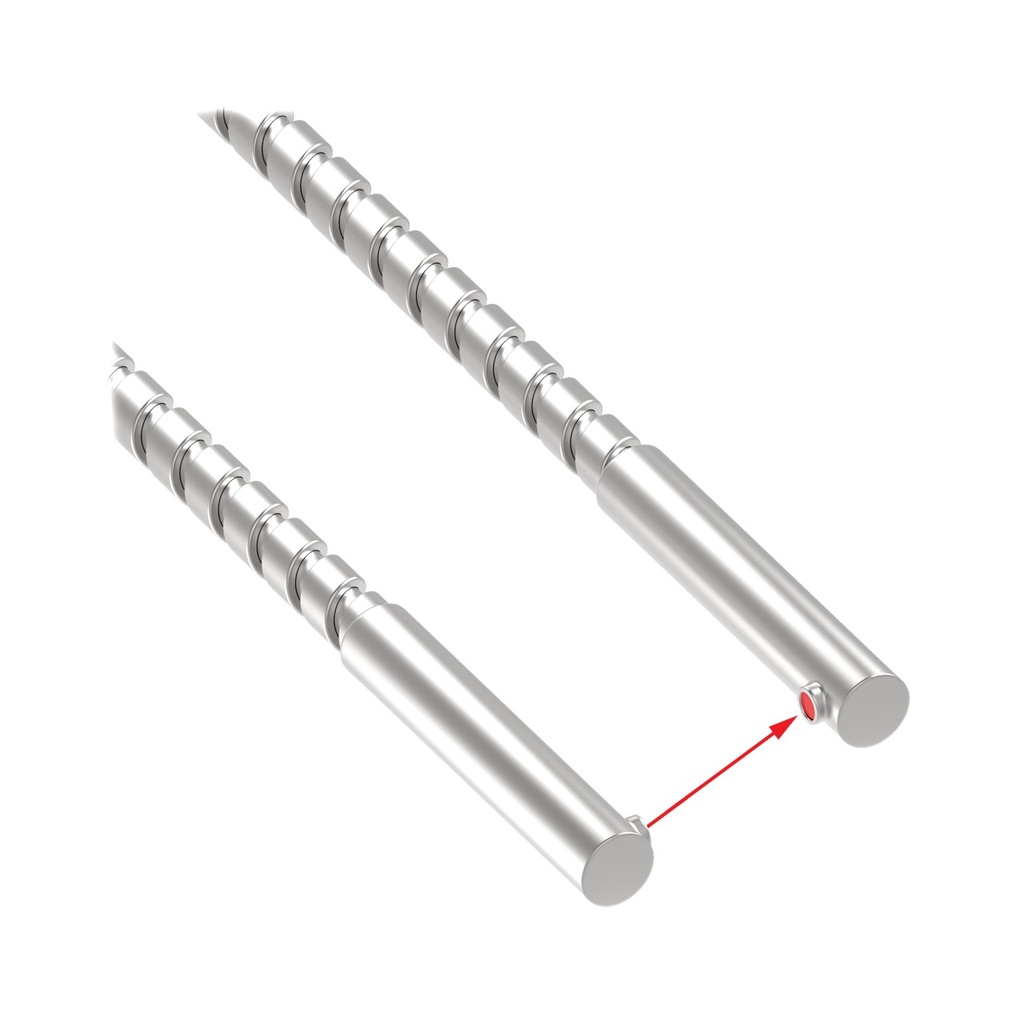

Opposed Mode Individual Glass Fiber 72 INCH long (IA16SMTA)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 21828
Weight: 0.24 lb(s)
Opposed Mode Individual Glass Fiber 72 INCH long
Features:
- Opposed Mode Individual Glass Fiber 72 INCH long
- 0.062 INCH dia. Bundle
- Stainless Steel Sheath
- Angled Tip: Modified Tight Angle
Opposed Mode Individual Glass Fiber 72 INCH long (IA16SMTA)
Opposed Mode Individual Glass Fiber 72 INCH long
Measurement Maximum:0
Max Operating Temperature:249 °C
Measurement Minimum:0
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Opposed
Feature: Chemical Resistant:No
Sensing End Segment 1:Ferrule
Tariff Fiber Meters:1479.66 fbm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:6.4 mm
Feature: Retractile:No
Fiber Sensing End Tip:Sideview
Termination:Terminated
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:Yes
Core Diameter:1.6 mm
Fiber Sheathing Material (Jacket):Stainless Steel Monocoil
Feature: Flex Relief:No
Termination Type:Glass Fiber Sensors
Fiber Sensing End Size - Mounting Area:6.4 mm
Fiber Length:1.829 m
Fiber Optic Type:Glass
Sensing End Segment 2:Sideview
Beam Exit:Right Angle
Feature: Liquid Level:No
Country of Origin:US
Max Distance: DF-G1:No Data
Max Distance: DF-G3:No Data
Max Distance: DF-G2:No Data
Minimum Bend Radius:25 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 249 °C |
| Measurement Minimum | 0 |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Opposed |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Ferrule |
| Tariff Fiber Meters | 1479.66 fbm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | 6.4 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Sideview |
| Termination | Terminated |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1.6 mm |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Feature: Flex Relief | No |
| Termination Type | Glass Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 6.4 mm |
| Fiber Length | 1.829 m |
| Fiber Optic Type | Glass |
| Sensing End Segment 2 | Sideview |
| Beam Exit | Right Angle |
| Feature: Liquid Level | No |
| Country of Origin | US |
| Max Distance: DF-G1 | No Data |
| Max Distance: DF-G3 | No Data |
| Max Distance: DF-G2 | No Data |
| Minimum Bend Radius | 25 mm |
