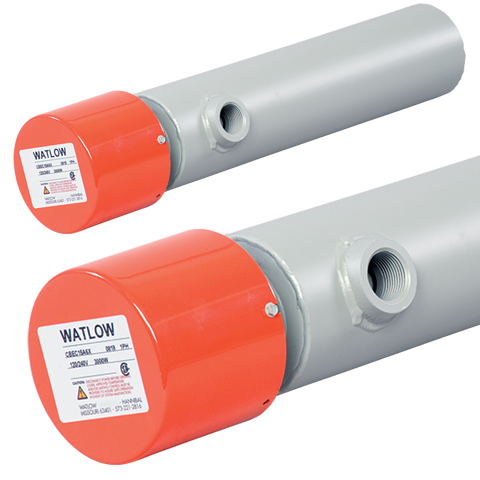

Watlow Circulation Heater, 2.5" Plug, 3 Elements
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2181-9321
Weight: 10.0 lb(s)
Circ Plug Size: 2 1/2 Inch Plug - 3 Elements
Circ Plug Voltage: 480
Circ Plug Wattage: 7,500
Watt Density: 50.1
B Dimension (Immersed element length): 20.6250
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 4.1250
Element Passivation? No
Element End Seal: Epoxy, 90 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Vertical Top
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Nameplate Part Number: 2181-9321 CS7
Watlow Circulation Heater, 2.5" Plug, 3 Elements
Circ Plug Size: 2 1/2 Inch Plug - 3 Elements
Circ Plug Voltage: 480
Circ Plug Wattage: 7,500
Watt Density: 50.1
B Dimension (Immersed element length): 20.6250
Electrical Phase configuration: 3 Phase - Delta wiring
Plug Material: Steel, Standard Class
Element Material: Alloy 800
Cold Section below Plug: 4.1250
Element Passivation? No
Element End Seal: Epoxy, 90 degree Celsius
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Vertical Top
Pilot Light: (not avail. with CSA or UL) No
Terminal Enclosure: Moisture Resistant (standard)
Nameplate Part Number: 2181-9321 CS7
Measurement Minimum:0
Input Voltage:480 VAC
Specifications
| Measurement Minimum | 0 |
| Input Voltage | 480 VAC |
