  3. Watlow Watrod Heater, 120 VAC, 725 Watt Custom Made
Public Pricelist (v2)
Representative photo. Please check item description for details.

Watlow Watrod Heater, 120 VAC, 725 Watt Custom Made

https://www.branom.com/web/image/product.template/187794/image_1920?unique=d6eac3b
(0 review)

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2174-8385

Weight: 2.0 lb(s)

On Hand: 0

Voltage: 120
Wattage: 1,200
Watt Density (calc.): 36
Element Diameter: 0.475" Diameter
Sheath Material: Alloy 800 0.035" Wall Thickness
Top Cold End: 2.5000
Bottom Cold End: 2.5000

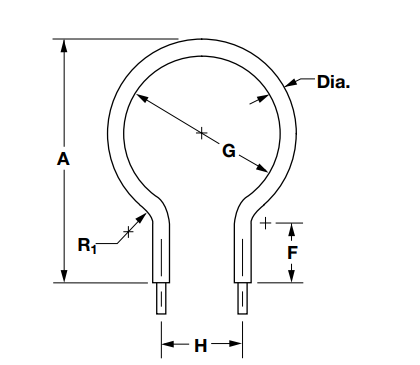

Catalog Figure Number: Catalog Figure No. 31
End Seal: Silicone Resin, 105 degree Celsius
Terminal Assembly: Stud, Ceramic, Full Assembly
Mounting: No Mounting Required
Surface Finish: Oxide Anneal
'A' Dimension (calculated): 11.2500
'F1' Dimension: 4.0000
'G' Dimension: 6.0000
'H' Dimension: 1.5000
Radius (R1): 0.6250
Sheath Length (calculated): 27.4375
Marking Part Number: 2174-8385 R7

  • Measurement Maximum
  • Measurement Minimum
  • Input Voltage
  • Heater Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Watlow Watrod Heater, 120 VAC, 725 Watt Custom Made

  • Measurement Maximum
  • Measurement Minimum
  • Input Voltage
  • Heater Type

$ 78.80 78.8 USD $ 78.80

$ 78.80

Not Available For Sale

This combination does not exist.

Voltage: 120
Wattage: 1,200
Watt Density (calc.): 36
Element Diameter: 0.475" Diameter
Sheath Material: Alloy 800 0.035" Wall Thickness
Top Cold End: 2.5000
Bottom Cold End: 2.5000
Catalog Figure Number: Catalog Figure No. 31
End Seal: Silicone Resin, 105 degree Celsius
Terminal Assembly: Stud, Ceramic, Full Assembly
Mounting: No Mounting Required
Surface Finish: Oxide Anneal
'A' Dimension (calculated): 11.2500
'F1' Dimension: 4.0000
'G' Dimension: 6.0000
'H' Dimension: 1.5000
Radius (R1): 0.6250
Sheath Length (calculated): 27.4375
Marking Part Number: 2174-8385 R7

Measurement Maximum:0
Measurement Minimum:0
Input Voltage:120 VAC
Heater Type:Tubular Heaters

Specifications

Measurement Maximum 0
Measurement Minimum 0
Input Voltage 120 VAC
Heater Type Tubular Heaters
