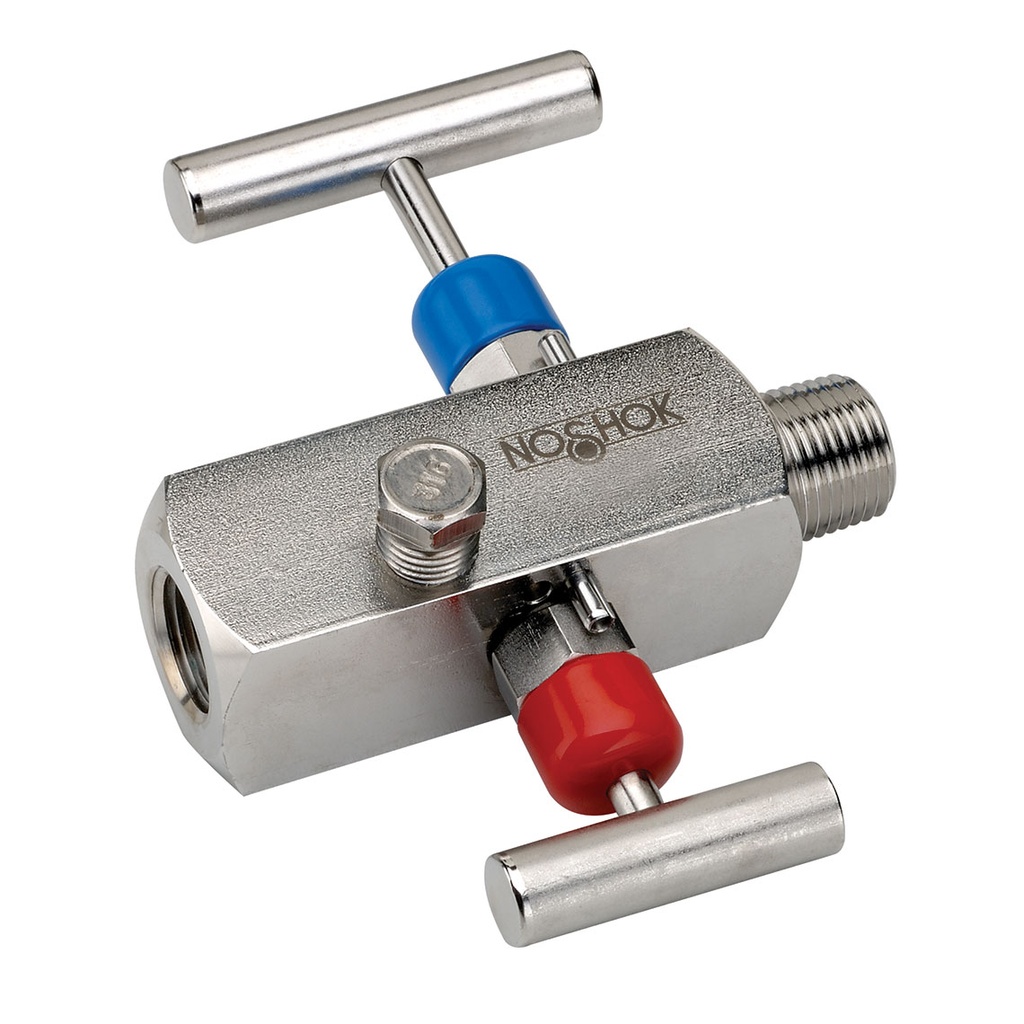

2170 Series 2-Valve Block & Bleed, Soft Seat/Tip Needle Valve, 1/4" NPT, Male x Female, Steel,
Manufacturer: Noshok Inc
Mfg Product Code: 2172-MFC
Weight: 2.0 lb(s)
On Hand: 0
1/4" NPT, Male x Female, Steel, Soft Seat/Tip Block and Bleed 2-Valve
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation
- The 1/4" NPT vent plug is located 90º to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
2170 Series 2-Valve Block & Bleed, Soft Seat/Tip Needle Valve, 1/4" NPT, Male x Female, Steel,
1/4" NPT, Male x Female, Steel, Soft Seat/Tip Block and Bleed 2-Valve
Brand_Name:Noshok
Orifice Size:0.187"
Seat:Soft Seat
Process Connection Type:NPT
Valve Type:Female-Male
Valve Material:Steel
Pressure Rating:6,000 psi @ 200 °F
Flow Coefficient:0.76 Cv
Process Connection Size:1/4"
Body Material:Steel
Process Type:Block & Bleed
Seat Type:Soft Seat
Specifications
| Brand_Name | Noshok |
| Orifice Size | 0.187" |
| Seat | Soft Seat |
| Process Connection Type | NPT |
| Valve Type | Female-Male |
| Valve Material | Steel |
| Pressure Rating | 6,000 psi @ 200 °F |
| Flow Coefficient | 0.76 Cv |
| Process Connection Size | 1/4" |
| Body Material | Steel |
| Process Type | Block & Bleed |
| Seat Type | Soft Seat |
