  3. Watlow 14" Flanged Tubular Heater, 480 VAC, 65000W, 72 Elements, 85" Immersion
Public Pricelist (v2)

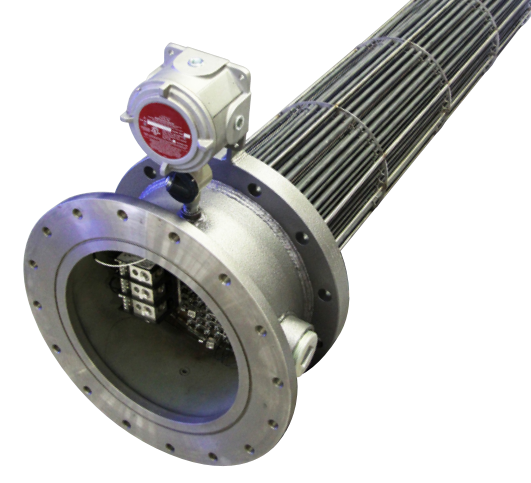

Representative photo. Please check item description for details.

Watlow 14" Flanged Tubular Heater, 480 VAC, 65000W, 72 Elements, 85" Immersion

https://www.branom.com/web/image/product.template/186765/image_1920?unique=b41733a
(0 review)

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2165-7217

Weight: 2.0 lb(s)

On Hand: 0

Flange Voltage: 480
Flange Wattage: 65,000
Watt Density: 4.1
B Dimension (Immersed element length): 85.0000
Number of Elements: 72 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 6
Flange Size: 14 Inch Flange
Flange Class: 150 lb.
Flange Material: 316 Stainless Steel Flange
Sheath Material: 316 SS
Baffles? No Baffles
Cold End Section below the Flange: 12.0000
Sheath Passivation? Yes
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Horizontal
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 56.6250
Stand-off Terminal Enclosure? No
Terminal Enclosure: Moisture Resistant (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2165-7217 FL7

  • Measurement Maximum
  • Process Connection Type
  • Measurement Minimum
  • Heater Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Watlow 14" Flanged Tubular Heater, 480 VAC, 65000W, 72 Elements, 85" Immersion

  • Measurement Maximum
  • Process Connection Type
  • Measurement Minimum
  • Heater Type

$ 33,893.00 33893.0 USD $ 33,893.00

$ 33,893.00

Not Available For Sale

This combination does not exist.

Flange Voltage: 480
Flange Wattage: 65,000
Watt Density: 4.1
B Dimension (Immersed element length): 85.0000
Number of Elements: 72 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 6
Flange Size: 14 Inch Flange
Flange Class: 150 lb.
Flange Material: 316 Stainless Steel Flange
Sheath Material: 316 SS
Baffles? No Baffles
Cold End Section below the Flange: 12.0000
Sheath Passivation? Yes
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Horizontal
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 56.6250
Stand-off Terminal Enclosure? No
Terminal Enclosure: Moisture Resistant (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 2165-7217 FL7

Measurement Maximum:0
Process Connection Type:NPT
Measurement Minimum:0
Heater Type:Tubular Heaters

Specifications

Measurement Maximum 0
Process Connection Type NPT
Measurement Minimum 0
Heater Type Tubular Heaters
