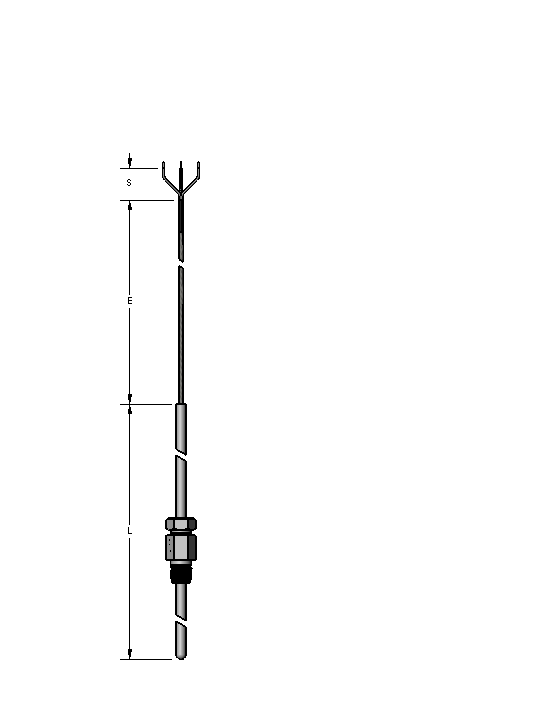

Representative photo. Please check item description for details.

Watlow RB Style RTD, 100 OHM 3 Wire (RB2005776)

https://www.branom.com/web/image/product.template/185867/image_1920?unique=d3c7a60
(0 review)

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2156-4526

Weight: 1.0 lb(s)

On Hand: 0

RTD Sensor Style RB Style RTD
Outside Diameter [in] H - .188 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Mounting Options G - Adjustable w/TFE Gland 1/8 NPT
Bend Option Straight Length
Sheath Length [L] (In) 6.000
Lead Wire Construction T - PFA_Stranded with Flex Armor
Lead Wire Length in inches 600
Lead Wire Termination T - Standard Leads
Flex Hose A - Plain
Flex Hose Length 144
Sheath Cold End Style FLX - Flex Hose Adapter
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No


  • Measurement Maximum
  • Process Connection Type
  • Stem Length
  • Measurement Minimum

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Watlow RB Style RTD, 100 OHM 3 Wire (RB2005776)

  • Measurement Maximum
  • Process Connection Type
  • Stem Length
  • Measurement Minimum

$ 141.10 141.1 USD $ 141.10

$ 141.10

Not Available For Sale

This combination does not exist.

RTD Sensor Style RB Style RTD
Outside Diameter [in] H - .188 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Mounting Options G - Adjustable w/TFE Gland 1/8 NPT
Bend Option Straight Length
Sheath Length [L] (In) 6.000
Lead Wire Construction T - PFA_Stranded with Flex Armor
Lead Wire Length in inches 600
Lead Wire Termination T - Standard Leads
Flex Hose A - Plain
Flex Hose Length 144
Sheath Cold End Style FLX - Flex Hose Adapter
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No

Measurement Maximum:0
Process Connection Type:NPT
Stem Length:6 in (152.4 mm)
Measurement Minimum:0

Specifications

Measurement Maximum 0
Process Connection Type NPT
Stem Length 6 in (152.4 mm)
Measurement Minimum 0
