SIMPLE LOGGER DATA LOGGER, CURRENT INPUT, 4-20mA

Manufacturer: Chauvin Arnoux Inc dba AEMC Instruments

Mfg Product Code: 2156.20

Weight: 4.0 lb(s)

Internal: Two 1.5 V AA non-rechargeable batteries External: USB 2.0 (computer or other power source, when powered by the USB the battery
is automatically disconnected)

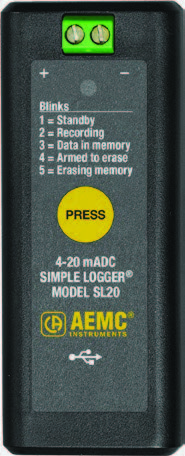

The Simple Logger® Model SL20 is a small one channel recording device powered by two AA alkaline batteries. It can also be powered by 5 V using the USB interface cable supplied. The input is (4 to 20) mADC facilitated by two screw terminals. Sample rate is 16/sec with a storage rate of once per second of the average of all the samples. Application software is included with the unit by plugging it into your computer using the USB cable and downloading it from our web site. Scaling units of measure and recording length can be set through the software. Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed.

The main advantage of the logger is its ability to begin recording with only the need to configure the length of time for the recording. A simple one button operation is all you need. The front panel LED alerts the operator of the logger’s status.
