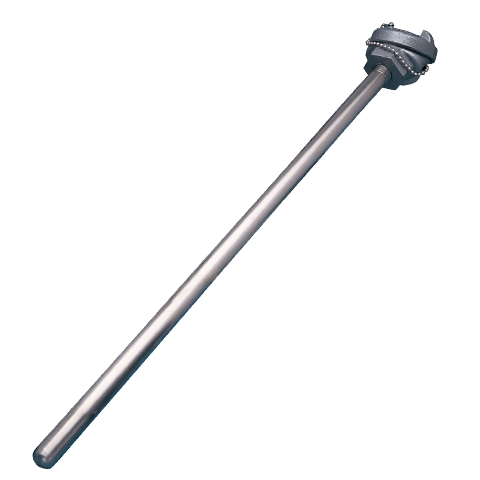

Watlow RTD Assembly w/Thermowell & Transmitter

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2154-3490

Weight: 2.0 lb(s)

RTD Sensor Style RR Style RTD with Double Fitting
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Thermowell Standard Thermowell
Thermowell Style TT - Threaded
Stem Configuration Threaded Taper
Immersion Length [in] (U) 22.500
Thermowell Material C - 316 SS
Process Connection (P) D - 3/4 inch NPT
Lag Dimension [in] (T) 4.75
Bore Diameter 0.260 Inch
Head Type E - Cast Aluminum
Conduit Connection A - 3/4 inch NPT
Termination Style B - 5900 Isolated Transmitter
Fitting F-Double Threaded, 303SS 1/2 NPT
Mounting Location [in] (A) 27.500
Tolerance [in] ± 1/2%
Attachment Method SB - Silver Braze
Transmitter Style B - 5900 Isolated, T/C or RTD
Sensor Type 0 - RTD PT100 3-WIRE 00385
Unit of Measure C - Celsius
Low Temperature Sign + Positive
Low Temperature 95
High Temperature Sign + Positive
High Temperature 135
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
