Clamp-on Meter Model 505 (TRMS, AC/DC, 400AAC/DC, 600VAC/DC, Ohms, Continuity) RATED 600V CAT III Replacement for Cat #2117.22 - Model 503

Manufacturer: Chauvin Arnoux Inc dba AEMC Instruments

Mfg Product Code: 2139.82

Weight: 7.0 lb(s)

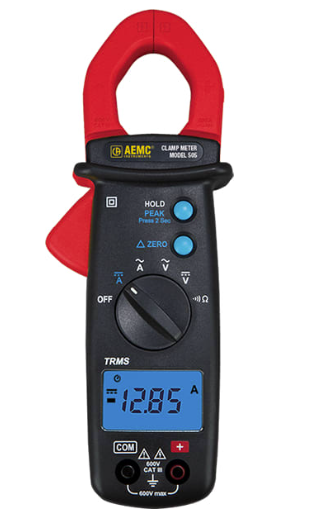

The Clamp-on Meter Model 505 is a general-purpose professional instrument. A strong mechanical case design, quality materials, full ranges and compliance to international safety and quality standards ensure a professional and reliable tool. The Model 505 is auto-ranging, and measures AC and DC voltage, AC and DC current, resistance, and continuity.

The large and complete 4000-count LCD features comprehensive user interface symbols such as a low battery indicator. It is equipped with a Data Hold function, which freezes the measurement. The Model 505 is compact for comfortable one-handed operation, and the hooked jaw design is easy to maneuver in crowded wiring and breaker panels. The jaw opening is 1.1" (28mm).

Features:

• TRMS
• AC/DC
• 400AAC/DC
• 600VAC/DC
• Ohms
• Continuity
• RATED 600V CAT III
• Replacement for Cat #2117.22 - Model 503
