  3. Watlow Rb Style Rtd, 100 Ohm 3 Wire, 316SS (RBHLGTA020BB300)
Public Pricelist (v2)

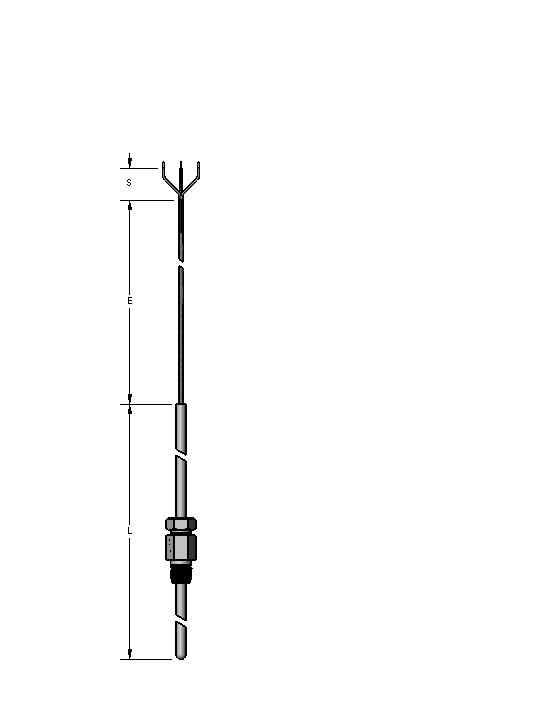

Representative photo. Please check item description for details.

Watlow Rb Style Rtd, 100 Ohm 3 Wire, 316SS (RBHLGTA020BB300)

https://www.branom.com/web/image/product.template/182062/image_1920?unique=d3c7a60
(0 review)

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 2122-1457

Weight: 0.5 lb(s)

On Hand: 0

RTD Sensor Style RB Style RTD
Outside Diameter [in] H - .188 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Mounting Options G - Adjustable w/TFE Gland 1/8 NPT
Bend Option Straight Length
Sheath Length [L] (In) 2.000
Lead Wire Construction L - PFA_Stranded with SS Overbraid
Lead Wire Length in inches 360
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No

  • Measurement Maximum
  • Process Connection Type
  • Stem Length
  • Measurement Minimum

This combination does not exist.

Contact Us

Watlow Rb Style Rtd, 100 Ohm 3 Wire, 316SS (RBHLGTA020BB300)

  • Measurement Maximum
  • Process Connection Type
  • Stem Length
  • Measurement Minimum

$ 112.40 112.4 USD $ 112.40

$ 112.40

Not Available For Sale

This combination does not exist.

RTD Sensor Style RB Style RTD
Outside Diameter [in] H - .188 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Mounting Options G - Adjustable w/TFE Gland 1/8 NPT
Bend Option Straight Length
Sheath Length [L] (In) 2.000
Lead Wire Construction L - PFA_Stranded with SS Overbraid
Lead Wire Length in inches 360
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No

Measurement Maximum:0
Process Connection Type:NPT
Stem Length:2 in (50.8 mm)
Measurement Minimum:0

Specifications

Measurement Maximum 0
Process Connection Type NPT
Stem Length 2 in (50.8 mm)
Measurement Minimum 0
