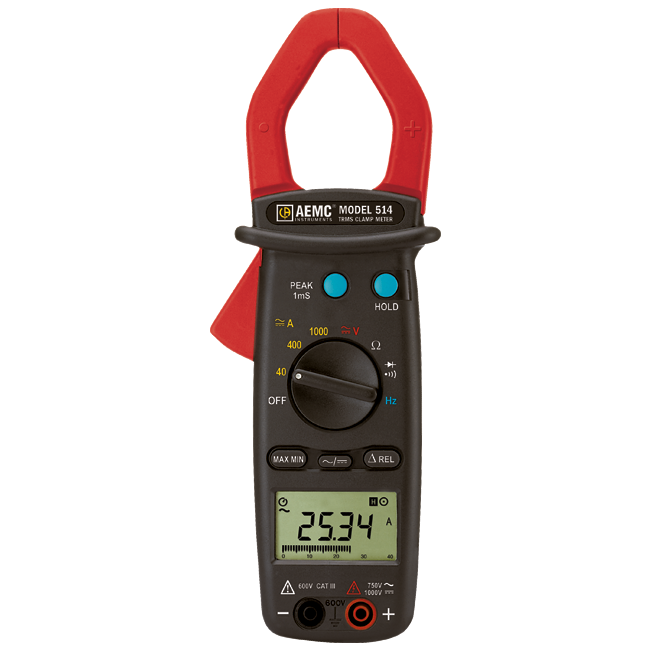

AEMC 514 Clamp-On Meter, AC/DC, TRMS, 1000AAC/DC, 750VAC/1000VDC, Hz, Ohms, Continuity

Manufacturer: Chauvin Arnoux Inc dba AEMC Instruments

Mfg Product Code: 2117.70

Weight: 6.0 lb(s)

The Clamp-on Meter Model 514 is a general purpose professional instrument that measures up to the toughest standards. It is built into a rugged mechanical case and is designed using quality polycarbonate materials. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The Model 514 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range.

The Model 514 measures AC and DC current, AC and DC voltage, resistance, continuity with beeper, and frequency from V or A. It also features a diode test function. The Model 514 also uses Hall sensor technology that provides both DC and AC current measurements to 1000A.

The Model 514 is sized for comfortable, one-handed operation. This model is True RMS sensing responding to distorted signal electrical systems. The jaw opening is 1.575" (40mm).

Features:

• AC/DC
• TRMS
• 1000AAC/DC
• 750VAC/1000VDC
• Hz
• Ohms
• Continuity
