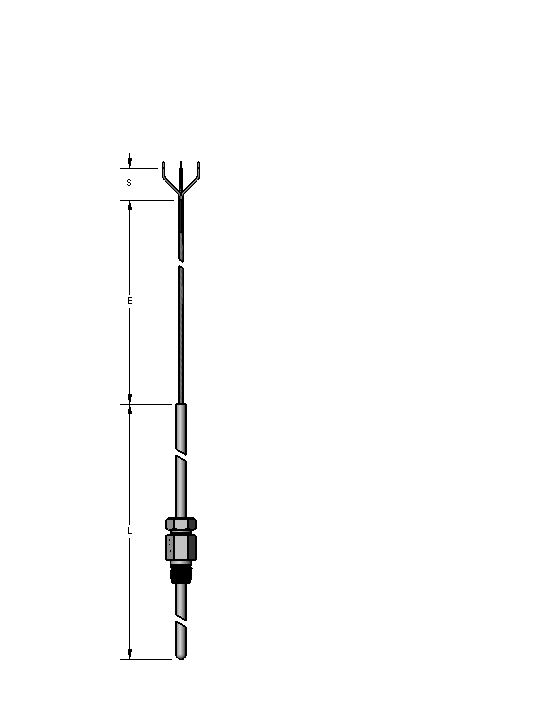

Watlow Rb Style Rtd, 100 Ohm 3 Wire, 316SS (RBHLGTA080BB300)
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 2105-5321
Weight: 2.0 lb(s)
RTD Sensor Style RB Style RTD
Outside Diameter [in] H - .188 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Mounting Options G - Adjustable w/TFE Gland 1/8 NPT
Bend Option Straight Length
Sheath Length [L] (In) 8.00
Lead Wire Construction L - PFA_Stranded with SS Overbraid
Lead Wire Length in inches 360
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Watlow Rb Style Rtd, 100 Ohm 3 Wire, 316SS (RBHLGTA080BB300)
RTD Sensor Style RB Style RTD
Outside Diameter [in] H - .188 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type B - 100 ohms Single 3-Wire
Initial Element Accuracy @ 0°C B - DIN Class B (+/-0.12%)
Mounting Options G - Adjustable w/TFE Gland 1/8 NPT
Bend Option Straight Length
Sheath Length [L] (In) 8.00
Lead Wire Construction L - PFA_Stranded with SS Overbraid
Lead Wire Length in inches 360
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
