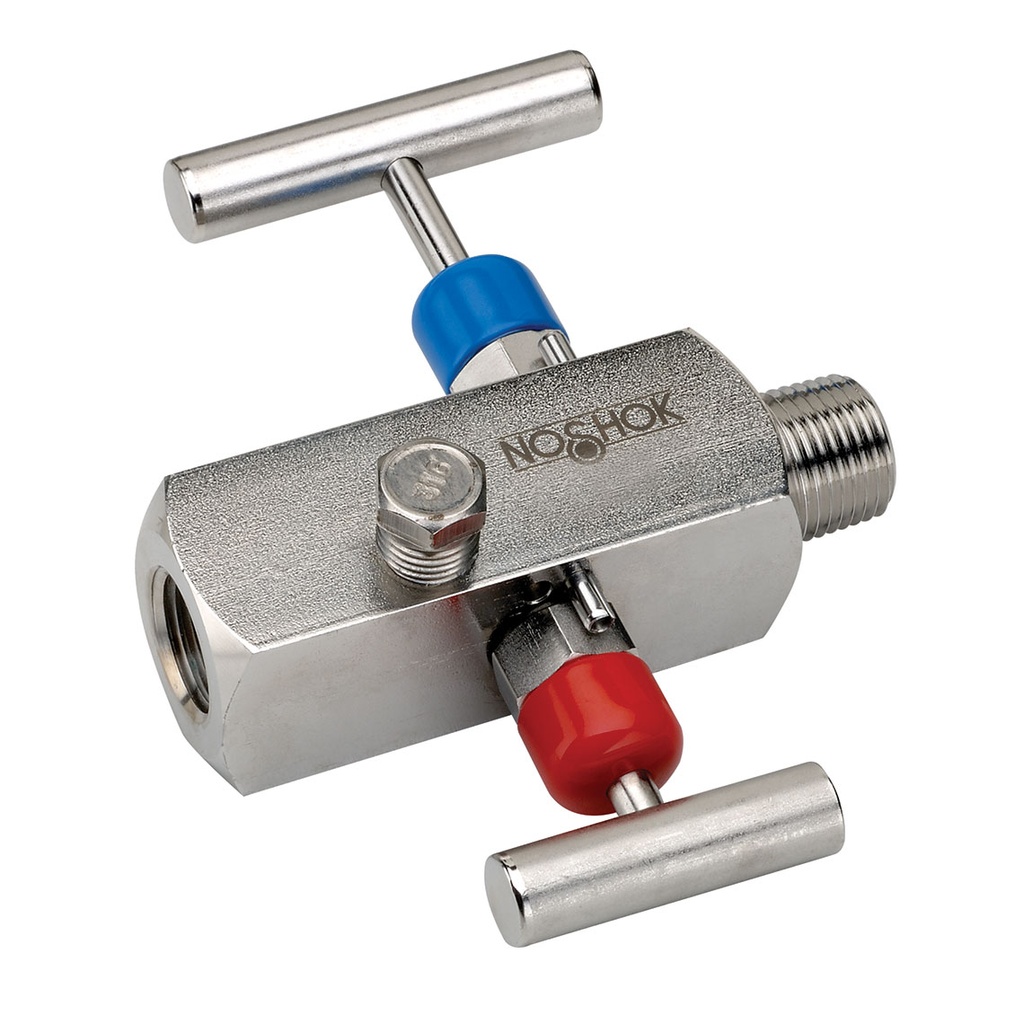

Representative photo. Please check item description for details.
2070 Series 2-Valve Block & Bleed, Hard Seat Needle Valve, 1/2" NPT, Female x Male, 316 SS, 0.187" Orifice
Manufacturer: Noshok Inc
Mfg Product Code: 2070-FMS
Weight: 2.0 lb(s)
On Hand: 0
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids, and the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation
- The 1/4" NPT vent plug is located 90º to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
2070 Series 2-Valve Block & Bleed, Hard Seat Needle Valve, 1/2" NPT, Female x Male, 316 SS, 0.187" Orifice
Brand_Name:Noshok
Orifice Size:0.187"
Seat:Hard Seat
Process Connection Type:NPT-Female/NPT-Male
Valve Type:Female-Male
Valve Material:316 SS
Pressure Rating:10,000 psi @ 200 °F
Flow Coefficient:0.44 Cv
Process Connection Size:1/2"
Body Material:316 SS
Process Type:Block & Bleed
Seat Type:Hard Seat
Specifications
| Brand_Name | Noshok |
| Orifice Size | 0.187" |
| Seat | Hard Seat |
| Process Connection Type | NPT-Female/NPT-Male |
| Valve Type | Female-Male |
| Valve Material | 316 SS |
| Pressure Rating | 10,000 psi @ 200 °F |
| Flow Coefficient | 0.44 Cv |
| Process Connection Size | 1/2" |
| Body Material | 316 SS |
| Process Type | Block & Bleed |
| Seat Type | Hard Seat |
