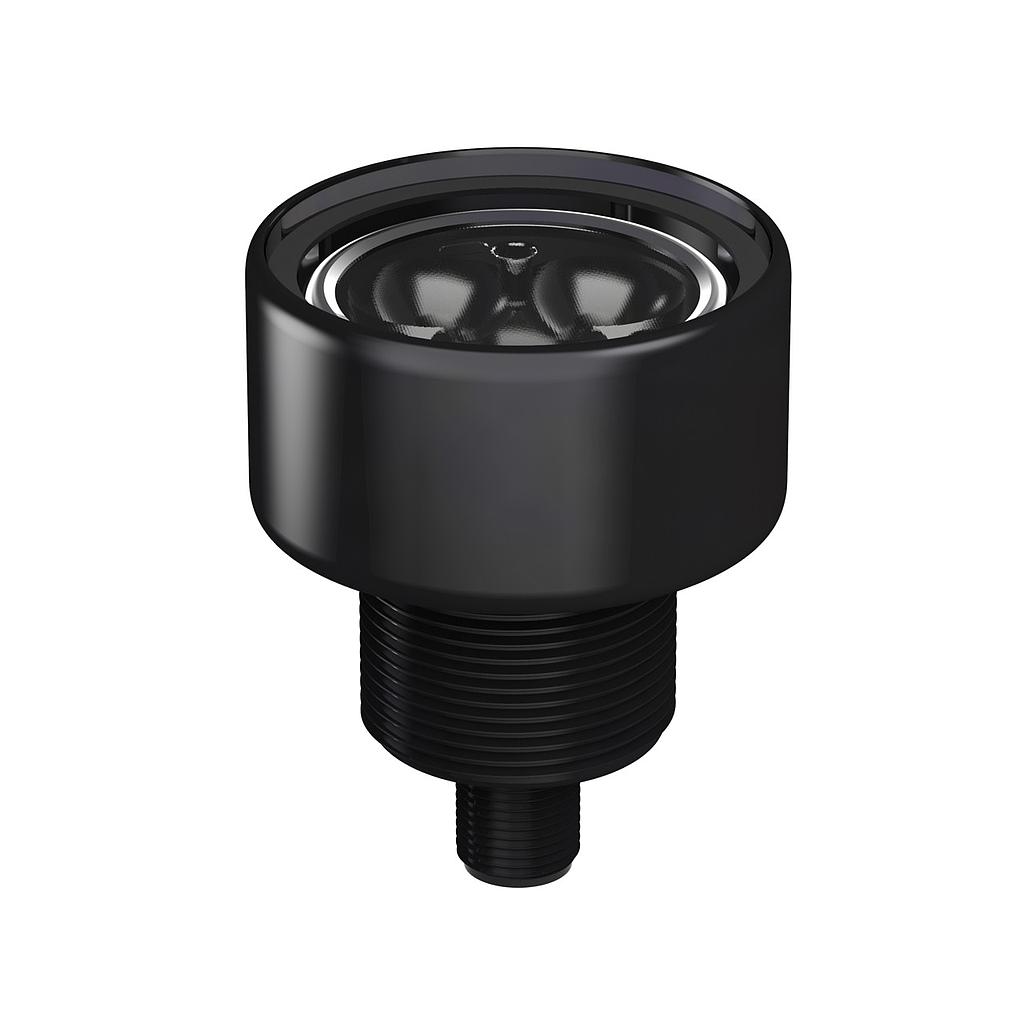

Vision Light: 50 mm Spot Light (LEDIS50L5-XQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 20601
Weight: 0.4 lb(s)
Vision Light: 50 mm Spot Light
Features:
- Vision Light: 50 mm Spot Light
- Voltage: 12-30Vdc
- Environmental Rating: IP67
- Color: IR
- 5 Deg Lens
- Euro 5-pin Quick Disconnect Connector
Vision Light: 50 mm Spot Light (LEDIS50L5-XQ)
Vision Light: 50 mm Spot Light
Power:DC
Measurement Maximum:0
Max Current Color:400 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Measurement Minimum:0
Housing Style:Circular Spot
Device Type:Spot Light
Housing Material_:Anodized Aluminum, Anodized Aluminum
Feature: Washdown Rated:Yes
Physical Dimensions:50.0 x 64.1 mm
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Quick Disconnect Type:M12
Number of Input Pins/Conductors:5
Color:Infrared
QD Type/Cable Length:M12; requires mating cordset
Lens Focusing Angle/Field of View:5°
Connection Type:Integral QD, Integral QD
Country of Origin:US
Lens Focusing Angle (°)/Field of View:5°
Specifications
| Power | DC |
| Measurement Maximum | 0 |
| Max Current Color | 400 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Housing Style | Circular Spot |
| Device Type | Spot Light |
| Housing Material_ | Anodized Aluminum, Anodized Aluminum |
| Feature: Washdown Rated | Yes |
| Physical Dimensions | 50.0 x 64.1 mm |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Quick Disconnect Type | M12 |
| Number of Input Pins/Conductors | 5 |
| Color | Infrared |
| QD Type/Cable Length | M12; requires mating cordset |
| Lens Focusing Angle/Field of View | 5° |
| Connection Type | Integral QD, Integral QD |
| Country of Origin | US |
| Lens Focusing Angle (°)/Field of View | 5° |
