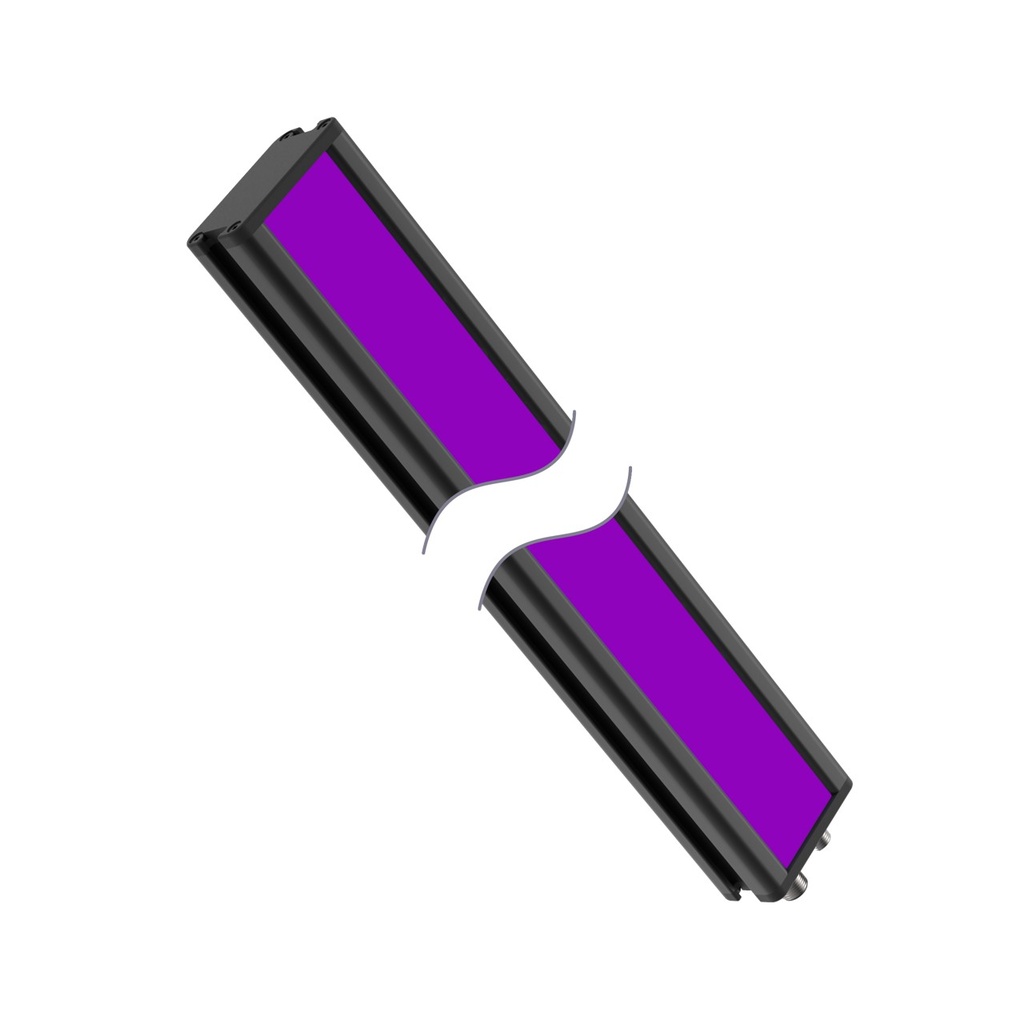

Vision Light: 870 mm Linear Array - IP50 (LEDUV395LA870XD6-PLQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 20350
Weight: 4.53 lb(s)
Vision Light: 870 mm Linear Array IP50
Features:
- Vision Light: 870 mm Linear Array
- IP50
- Dimmable Active Low
- 36 High Intensity 395nm UV LEDs
- 24 V dc
- Diffuse Plastic Window
- Euro 5-pin Quick Disconnect Connector
Vision Light: 870 mm Linear Array - IP50 (LEDUV395LA870XD6-PLQ)
Vision Light: 870 mm Linear Array IP50
Power:DC
Measurement Maximum:0
Max Current Color:3000 mA
Max Operating Temperature:50 °C
Measurement Minimum:0
Housing Style:Linear Strip
Device Type:Bar Light
Housing Material_:Anodized Aluminum, Anodized Aluminum
Physical Dimensions:914.6 x 59.4 x 32.6 mm
Supply Voltage:24 V DC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Quick Disconnect Type:M12
Number of Input Pins/Conductors:5
Color:Ultraviolet
QD Type/Cable Length:M12; requires mating cordset
Lens Focusing Angle/Field of View:5°
Intensity Adjustment:Potentiometer and Analog
Connection Type:Integral QD, Integral QD
Country of Origin:US
Lens Focusing Angle (°)/Field of View:5°
Specifications
| Power | DC |
| Measurement Maximum | 0 |
| Max Current Color | 3000 mA |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Housing Style | Linear Strip |
| Device Type | Bar Light |
| Housing Material_ | Anodized Aluminum, Anodized Aluminum |
| Physical Dimensions | 914.6 x 59.4 x 32.6 mm |
| Supply Voltage | 24 V DC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Quick Disconnect Type | M12 |
| Number of Input Pins/Conductors | 5 |
| Color | Ultraviolet |
| QD Type/Cable Length | M12; requires mating cordset |
| Lens Focusing Angle/Field of View | 5° |
| Intensity Adjustment | Potentiometer and Analog |
| Connection Type | Integral QD, Integral QD |
| Country of Origin | US |
| Lens Focusing Angle (°)/Field of View | 5° |
