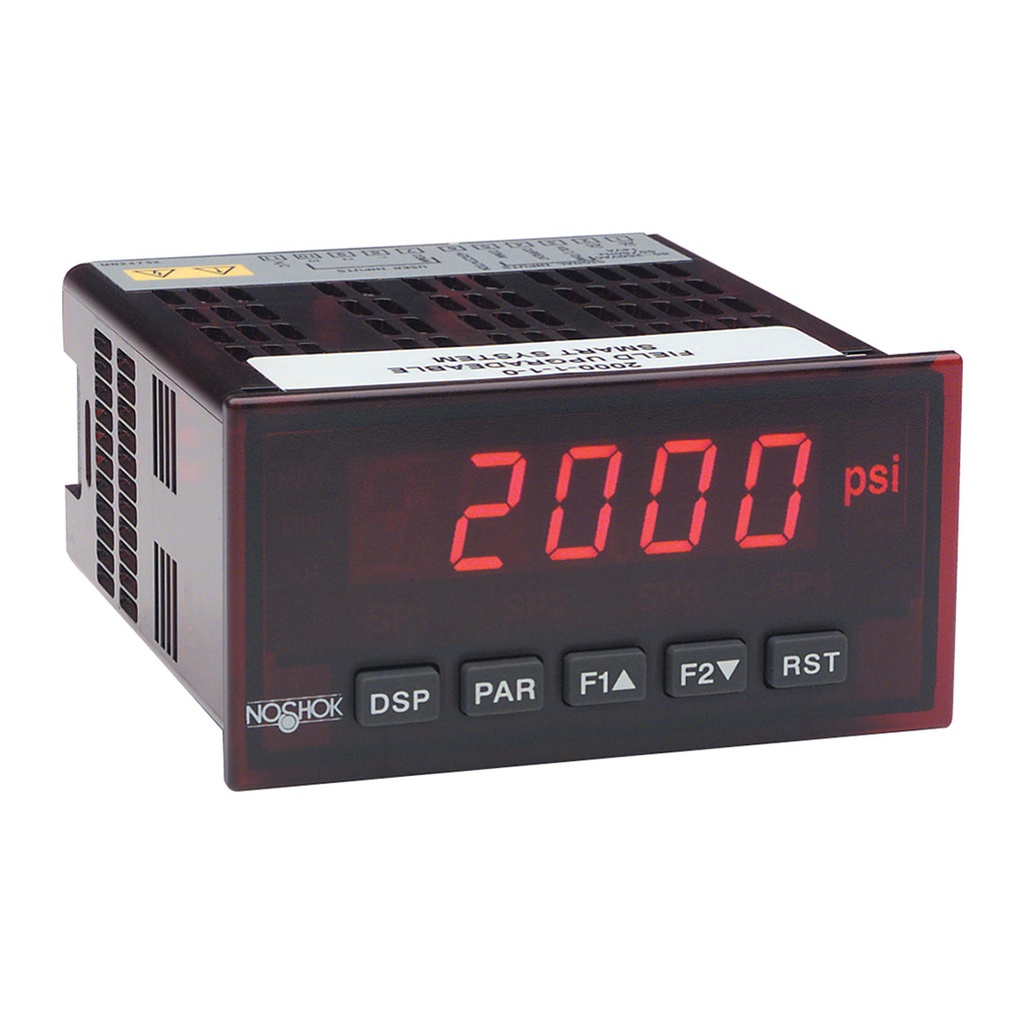

Representative photo. Please check item description for details.
2000 Series Smart System Intelligent Digital Indicator, Current Input, 115/230 Vac, w/Dual Relay Card
Manufacturer: Noshok Inc
Mfg Product Code: 2000-1-1-1
Weight: 0.13 lb(s)
On Hand: 0
Current Input, 115/230 Vac, Smart System Indicator with Dual Relay Card
- Accepts a variety of standard process signals and precisely scales them into any desired unit of measurement
- Single input or dual input
- Employs advanced technology for stable, drift-free readout
- Field upgradeable with plug-in option cards; including 4 set point alarms, analog output and serial communication
- 16 point scaling for non-linear processes
- Max. and min. value display
2000 Series Smart System Intelligent Digital Indicator, Current Input, 115/230 Vac, w/Dual Relay Card
Current Input, 115/230 Vac, Smart System Indicator with Dual Relay Card
Brand_Name:Noshok
Max Operating Temperature:122 °F
Power Supply:115/230 VAC
Input Communication Protocol:4-20 mA
Ingress Protection:IP65
Vibration:5-150 Hz, 2g
Shock:25 g
Electrical Connector Type:Screw Terminals
Option Card:Dual Relay
Process Display:5 digit, 0.56" Red LED
Memory:EEPROM
Humidity:<85%, non-condensing
Update Rate:200 ms
Altitude:≤ 2,000 m
Linearization:2-16 points
Filtering:0 to 25 sec
Normal Rejection Mode:60 dB 50/60 Hz
NEMA / UL:NEMA 4X
Specifications
| Brand_Name | Noshok |
| Max Operating Temperature | 122 °F |
| Power Supply | 115/230 VAC |
| Input Communication Protocol | 4-20 mA |
| Ingress Protection | IP65 |
| Vibration | 5-150 Hz, 2g |
| Shock | 25 g |
| Electrical Connector Type | Screw Terminals |
| Option Card | Dual Relay |
| Process Display | 5 digit, 0.56" Red LED |
| Memory | EEPROM |
| Humidity | <85%, non-condensing |
| Update Rate | 200 ms |
| Altitude | ≤ 2,000 m |
| Linearization | 2-16 points |
| Filtering | 0 to 25 sec |
| Normal Rejection Mode | 60 dB 50/60 Hz |
| NEMA / UL | NEMA 4X |
