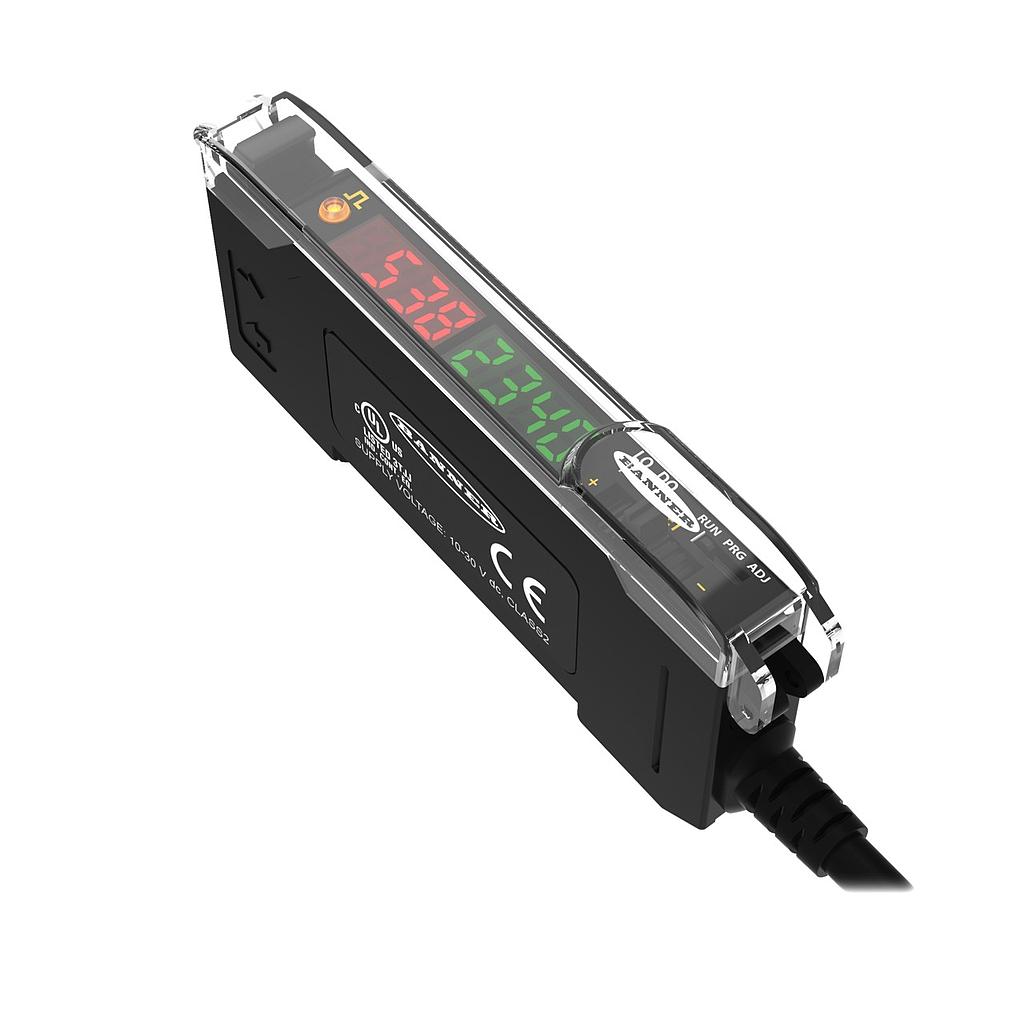

DF-G1 Dual Display Fiber Amplifier (DF-G1-KS-Q5)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 19524
Weight: 0.16 lb(s)
DF-G1 Dual Display Fiber Amplifier
Features:
- DF-G1 Dual Display Fiber Amplifier
- Range: Depends on fiber
- Input 18-30 V dc
- Output 1: Push/Pull with IO-Link
- Output 2: PNP only
- M12 Euro 150 mm (6 in) Pigtail Connector
- 4-pin
DF-G1 Dual Display Fiber Amplifier (DF-G1-KS-Q5)
DF-G1 Dual Display Fiber Amplifier
Brand_Name:Banner
Manufacturer Product Family:DFG SERIES
Min Operating Temperature:-10 °C
Max Operating Temperature:55 °C
Power Supply:10-30 VDC
Delay at Power-Up:500 ms
Feature: Bussable Power:No
Measurement Minimum:0
Ingress Protection:IP50
Repeatability (µs):66 to 100
Housing Style:DIN Rail
Max Relative Humidity:90% @ 60 °C, 90% @ 60 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
Feature: IO Link:Yes
Feature: Quick Disconnect:Yes
Feature: Audible:No
Quick Disconnect Type:M12
Number of Pins:4
Adjustments:Teach Button
Feature: Timing (Hold/Delay):Yes
Input/Output:Discrete & Serial
Min Response Time:.2 ms
Output Type (Specific):IO-Link and Single Discrete
Fiber Type:Plastic and Glass
Color LED - Amplifiers:Red
Feature: Remote Teach:No
Feature: Intrinsically Safe:No
Connection Type:Pigtail QD
Country of Origin:CN
NEMA / UL:NEMA 1
Cord/Cable Length:0.15 m
Fiber Termination Type:Unterminated Plastic Fibers or T5 Termination
Feature: Crosstalk Avoidance:Yes
Indicator Type:Dual Digital Displays
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | DFG SERIES |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Power Supply | 10-30 VDC |
| Delay at Power-Up | 500 ms |
| Feature: Bussable Power | No |
| Measurement Minimum | 0 |
| Ingress Protection | IP50 |
| Repeatability (µs) | 66 to 100 |
| Housing Style | DIN Rail |
| Max Relative Humidity | 90% @ 60 °C, 90% @ 60 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| Feature: IO Link | Yes |
| Feature: Quick Disconnect | Yes |
| Feature: Audible | No |
| Quick Disconnect Type | M12 |
| Number of Pins | 4 |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Discrete & Serial |
| Min Response Time | .2 ms |
| Output Type (Specific) | IO-Link and Single Discrete |
| Fiber Type | Plastic and Glass |
| Color LED - Amplifiers | Red |
| Feature: Remote Teach | No |
| Feature: Intrinsically Safe | No |
| Connection Type | Pigtail QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 1 |
| Cord/Cable Length | 0.15 m |
| Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
| Feature: Crosstalk Avoidance | Yes |
| Indicator Type | Dual Digital Displays |
