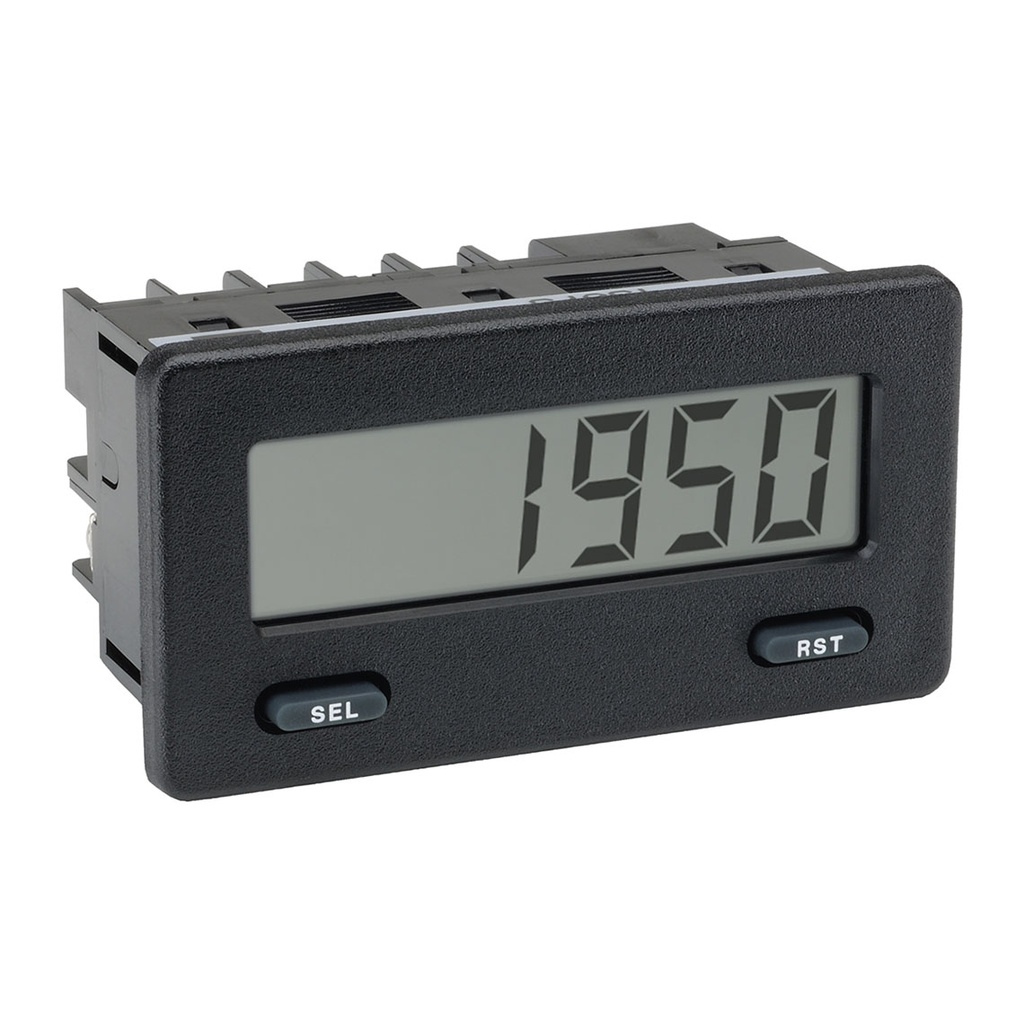

Representative photo. Please check item description for details.
1950 Series Compact Smart System Digital Indicator, Current Input w/Back Lit Display
Manufacturer: Noshok Inc
Mfg Product Code: 1950C-2-0
Weight: 0.12 lb(s)
On Hand: 0
Current Input Compact Smart System Indicator w/Back Lit Display
- Offers all the features of a full size panel meter in a compact digital display for pressure, flow, level, force, and temperature measurement
- 5 digit, 0.48" LCD display with a span range of -9999 to 99999
- Reflective LCD display; or green backlighting optional
- Display is fully expandable to accommodate applications requiring relays, dual sinking outputs, and serial communications by RS232 or RS485
- Fully scalable & field upgradable
- Simple programming through front panel
1950 Series Compact Smart System Digital Indicator, Current Input w/Back Lit Display
Current Input Compact Smart System Indicator w/Back Lit Display
Min Operating Temperature:-31 °F
Max Operating Temperature:167 °F
Input Communication Protocol:Current
Ingress Protection:IP65
Display Lighting:Backlight
Vibration:5-500 Hz, 5g
Shock:30 g
Electrical Connector Type:Screw Terminals
Process Display:5 digit, 0.48" LCD
Memory:EEPROM
Humidity:<85%, non-condensing
Update Rate:500 ms
Altitude:≤ 2,000 m
Linearization:2 point
Filtering:.25 to 1 sec
Normal Rejection Mode:60 dB 50/60 Hz
NEMA / UL:NEMA 4X
Specifications
| Min Operating Temperature | -31 °F |
| Max Operating Temperature | 167 °F |
| Input Communication Protocol | Current |
| Ingress Protection | IP65 |
| Display Lighting | Backlight |
| Vibration | 5-500 Hz, 5g |
| Shock | 30 g |
| Electrical Connector Type | Screw Terminals |
| Process Display | 5 digit, 0.48" LCD |
| Memory | EEPROM |
| Humidity | <85%, non-condensing |
| Update Rate | 500 ms |
| Altitude | ≤ 2,000 m |
| Linearization | 2 point |
| Filtering | .25 to 1 sec |
| Normal Rejection Mode | 60 dB 50/60 Hz |
| NEMA / UL | NEMA 4X |
