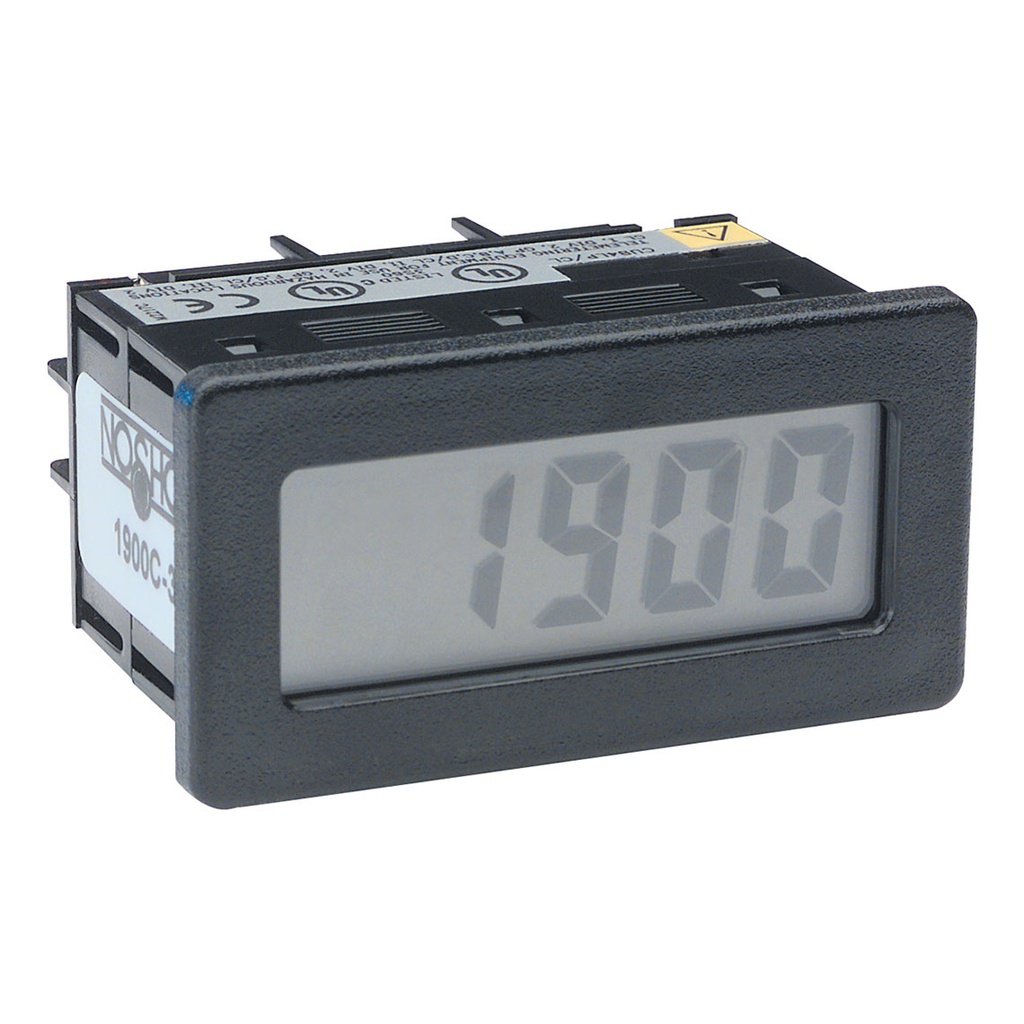

1900C Series Compact Loop-Powered Digital Indicator, Panel Meter
Manufacturer: Noshok Inc
Mfg Product Code: 1900C-1
Weight: 0.26 lb(s)
On Hand: 0
Panel Meter Compact Loop-Powered
- Provides compact digital display of any desired unit of pressure, temperature, level, force, or flow measurement
- 3-1/2 digit, 0.6" high display with a span range of 0 to 1999
- Positive image reflective LCD
- Span and zero offset capabilities
- Negative pressure and overpressure indication
- Selectable decimal point position
1900C Series Compact Loop-Powered Digital Indicator, Panel Meter
Panel Meter Compact Loop-Powered
Brand_Name:Noshok
Min Operating Temperature:32 °F
Max Operating Temperature:140 °F
Input Communication Protocol:Current
Ingress Protection:IP65
Vibration:5-500 Hz, 5g
Shock:30 g
Electrical Connector Type:Screw Terminals
Process Display:3½ digit, 0.6" LCD (-1999 to 1999)
Memory:EEPROM
Humidity:85% max., non-condensing
Update Rate:400 ms
Altitude:≤ 2,000 m
Linearization:2 point
Normal Rejection Mode:60 dB 50/60 Hz
NEMA / UL:NEMA 4X
Specifications
Brand_Name | Noshok |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 140 °F |
Input Communication Protocol | Current |
Ingress Protection | IP65 |
Vibration | 5-500 Hz, 5g |
Shock | 30 g |
Electrical Connector Type | Screw Terminals |
Process Display | 3½ digit, 0.6" LCD (-1999 to 1999) |
Memory | EEPROM |
Humidity | 85% max., non-condensing |
Update Rate | 400 ms |
Altitude | ≤ 2,000 m |
Linearization | 2 point |
Normal Rejection Mode | 60 dB 50/60 Hz |
NEMA / UL | NEMA 4X |
